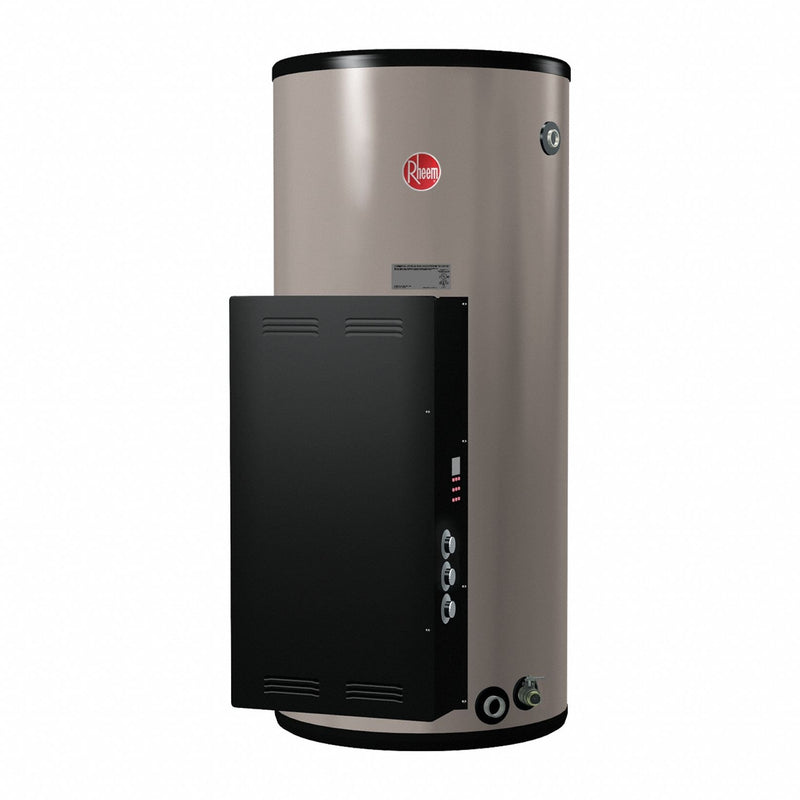

Rheem ES85-12-G Electric Tank Water Heater, 85 gal, 480V, 12,000 W, Single/Three Phase, 57.7 in x 34 in

Rheem ES85-12-G Electric Tank Water Heater, 85 gal, 480V, 12,000 W, Single/Three Phase, 57.7 in x 34 in

UPC: 203524114530 | Harmonization / Schedule B : 8516.10.0040

Country of Origin: United States | Shipping Weight: 380 lbs

$5,312.45 - $5,312.45
$5,312.45
$5,312.45 - $5,312.45
$5,312.45

Electric Water Heater, Operating Voltage 480V AC, Phase Single, Three, Equivalent BtuH 40,946 BtuH, First Hour Rating Not Applicable, Maximum Recovery Flow Rate 124 gph @ 40 Degrees F, Overall Height 57.7 in, Power Consumption 12,000 W, Tank Capacity 85 gal, Tank Diameter 28.25 in, Market Commercial, Number of Elements 3, Automatic Thermostat Yes, Cold Inlet Size 1 1/2 in, Cold Inlet Type NPT, Current 25 A, Element Material Stainless Steel, Height to Cold Inlet 4.8 in

Commercial / Residential Commercial
Water Heater Design Whole House
Tank Capacity 85 gal
Phase Single, Three
Total Watts 12,000 W
Number of Elements 3
Tank Capacity - Plumbing 85.0 gal
Recovery @ 140 F Rise 35 gph
Recovery @ 50 F Rise 99 gph
Includes Brass Drain Valve, Factory-Installed T&P Valve
Item - Water Heaters Electric Water Heater
Standards AHRI Compliant, ASME, CSA Certified, LWH, UL EPH Listed, UL Listed
Industry Type Commercial
Recovery @ 110 F Rise 45 gph
Temp. Range 120 Degrees to 180 Degrees F
Fuel Type Electric
Recovery @ 120 F Rise 41 gph
Recovery @ 130 F Rise 38 gph
Connection Location Cold Side/Hot Top
Voltage - Water Heaters 480
Water Connection 1-1/2 in NPT
Recovery @ 70 F Rise 71 gph
Features Heavy Duty; Long Life Tank Design; Automatic Temperature Control; 98% Thermal Efficiency; Minimal Standby Heat Loss
Vent Type Standard
Recovery @ 90 F Rise 55.0 gph
Max. Pressure 150 psi
System of Measurement Inch
Recovery @ 100 F Rise 50 gph
Phase - Water Heaters 1/3
Residential / Commercial Commercial
Compliance Exceeds Energy Effeciency Codes of all States. Design Certified by Underwriters Laboratory (UL) to Meet UL Standard 1453 and UL/NSF005., Tested According to DOE Test Procedures and Exceed the Minimum Energy Factor Requirements of Current ASHRAE Standards
Amps AC 15 for 3 Phase, 25 for 1 Phase
Application Ferrous / Non-Ferrous Metal Over 1/8", S/S Tube, PVC, Cast Pipe and Nail Embedded Wood
Connection Type NPT
Water Connection Location Side, Top
Equivalent BtuH 40,946 BtuH
Included Valves Temperature and Pressure Relief
Tank Lining Material Vitreous Glass
Maximum Recovery Flow Rate 124 gph @ 40 Degrees F
Element Material Stainless Steel
Thermostat Mounting Surface
Current 25 A
Automatic Thermostat Yes
Cold Inlet Type NPT
Maximum Water Pressure 150 psi
Hot Outlet Type NPT
Tank Insulation Material Polyurethane
Operating Voltage 480V AC
Maximum Delivered Temperature 190 Degrees F
Market Commercial
Thermal Efficiency 98 %
Minimum Delivered Temperature 90 Degrees F
Recovery Rate @ Rise 35 gph @ 140 Degrees F, 38 gph @ 130 Degrees F, 41 gph @ 120 Degrees F, 45 gph @ 110 Degrees F, 50 gph @ 100 Degrees F, 55 gph @ 90 Degrees F, 62 gph @ 80 Degrees F, 71 gph @ 70 Degrees F, 83 gph @ 60 Degrees F, 99 gph @ 50 Degrees F
Power Consumption 12,000 W
Country of Origin United States
