Commercial / Residential |
Commercial |
Water Heater Design |
Whole House |
Tank Capacity - Plumbing |
119.9 gal |
Voltage - Water Heaters |
480 |
Phase - Water Heaters |
1/3 |
Total Watts |
36,000 W |
Standards |
AHRI Compliant, ASME, CSA Certified, LWH, UL EPH Listed, UL Listed |
Recovery @ 130 F Rise |
115 gph |
Temp. Range |
120 Degrees to 180 Degrees F |
Recovery @ 110 F Rise |
135 gph |
Number of Elements |
6 |
Compliance |
UL Certified; UL Standard 174; NC Compliant; ASHRAE Standards |
Max. Pressure |
150 psi |
Tank Capacity |
120 gal |
Recovery @ 120 F Rise |
124 gph |
Recovery @ 50 F Rise |
298 gph |
Recovery @ 100 F Rise |
149 gph |
Water Connection |
1-1/2 in NPT |
Includes |
Brass Drain Valve, Factory-Installed T&P Valve |
Phase |
Single, Three |
Item |

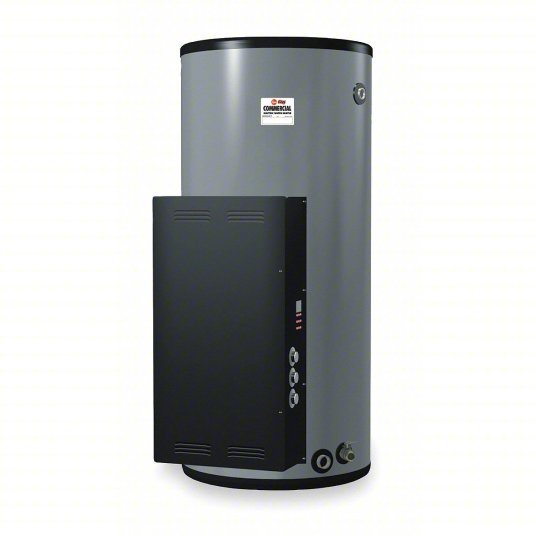

Electric Water Heater |
Fuel Type |
Electric |
Recovery @ 90 F Rise |
165.0 gph |
Industry Type |
Commercial |
System of Measurement |
Inch |
Amps AC |
43 A |
Residential / Commercial |
Commercial |
Features |
Heavy Duty; Long Life Tank Design; Automatic Temperature Control; 98% Thermal Efficiency; Minimal Standby Heat Loss |
Recovery @ 70 F Rise |
213 gph |
Vent Type |
Standard |
Recovery @ 140 F Rise |
106 gph |
Application |
Ferrous / Non-Ferrous Metal Over 1/8", S/S Tube, PVC, Cast Pipe and Nail Embedded Wood |
Connection Location |
Cold Side/Hot Top |
Connection Type |
NPT |
Recovery Rate @ Rise |
106 gph @ 140 Degrees F, 115 gph @ 130 Degrees F, 124 gph @ 120 Degrees F, 135 gph @ 110 Degrees F, 149 gph @ 100 Degrees F, 165 gph @ 90 Degrees F, 213 gph @ 70 Degrees F |
Tank Insulation Material |
Polyurethane |
Operating Voltage |
480V AC |
Tank Outer Shell Material |
Steel |
Cold Inlet Type |
NPT |
Thermostat Mounting |
Surface |
Current |
75 A |
Minimum Delivered Temperature |
120 Degrees F |
Power Consumption |
36,000 W |
Market |
Commercial |
First Hour Rating |
Not Applicable |
Included Valves |
Temperature and Pressure Relief |
Water Connection Location |
Side |
Thermal Efficiency |
98 % |
Tank Outer Shell Finish |
Porcelain Enamel |
Equivalent BtuH |
122,839 BtuH |
Maximum Recovery Flow Rate |
298 gph @ 50 Degrees F |
Tank Lining Material |
Vitreous Glass |
Element Material |
Stainless Steel |
Automatic Thermostat |
Yes |
Hot Outlet Type |
NPT |
Maximum Water Pressure |
150 psi |
Maximum Delivered Temperature |
181 Degrees F |
