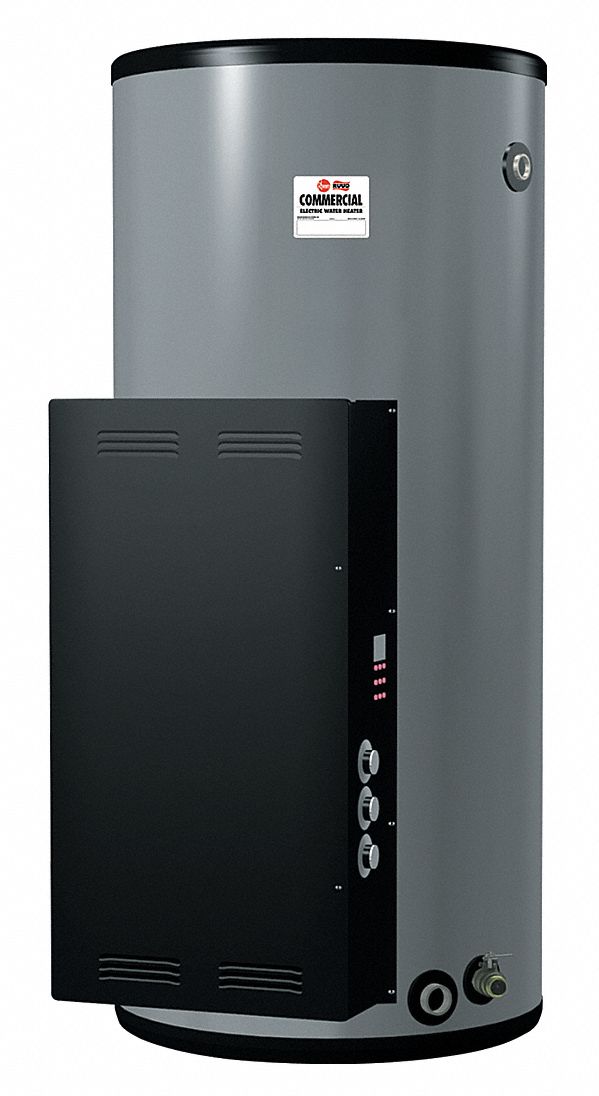

Rheem ES120-27-G Electric Tank Water Heater, 120 gal, 480V, 27,000 W, Single/Three Phase, 279 gph @ 40°F

Rheem ES120-27-G Electric Tank Water Heater, 120 gal, 480V, 27,000 W, Single/Three Phase, 279 gph @ 40°F

UPC: 203524505826 | Harmonization / Schedule B : 8516.10.0040

Country of Origin: United States | Shipping Weight: 404 lbs

$9,100.48 - $9,100.48
$9,100.48
$9,100.48 - $9,100.48
$9,100.48

Electric Water Heater, Operating Voltage 480V AC, Phase Single, Three, Equivalent BtuH 92,129 BtuH, First Hour Rating Not Applicable, Maximum Recovery Flow Rate 279 gph @ 40 Degrees F, Overall Height 67.6 in, Power Consumption 27,000 W, Tank Capacity 120 gal, Tank Diameter 30.25 in, Market Commercial, Number of Elements 6, Automatic Thermostat Yes, Cold Inlet Size 1 1/2 in, Cold Inlet Type NPT, Current 56 A, Element Material Stainless Steel, Height to Cold Inlet 4.8 in

Commercial / Residential Commercial
Water Heater Design Whole House
Tank Capacity 120 gal
Voltage 480V
Phase Single, Three
Total Watts 27,000 W
Industry Type Commercial
Recovery @ 110 F Rise 102 gph
Recovery @ 70 F Rise 160 gph
Recovery @ 90 F Rise 124.0 gph
Recovery @ 50 F Rise 223 gph
Compliance Exceeds Energy Effeciency Codes of all States. Design Certified by Underwriters Laboratory (UL) to Meet UL Standard 1453 and UL/NSF005., Tested According to DOE Test Procedures and Exceed the Minimum Energy Factor Requirements of Current ASHRAE Standards
Recovery @ 120 F Rise 93 gph
Amps AC 33 for 3 Phase, 56 for 1 Phase
Residential / Commercial Commercial
Voltage - Water Heaters 480
Connection Type NPT
Connection Location Cold Side/Hot Top
Tank Capacity - Plumbing 119.9 gal
Features Inputs of 3KW to 108KW, Four Voltages to choose from, Lifeguard Stainless Steel Elements, 98% Thermal Effeciency, System Sentenal, Full Port/Full Flow Brass Drain Valve
Recovery @ 140 F Rise 80 gph
Fuel Type Electric
System of Measurement Inch
Recovery @ 130 F Rise 86 gph
Includes Brass Drain Valve, Factory-Installed T&P Valve
Application Ferrous / Non-Ferrous Metal Over 1/8", S/S Tube, PVC, Cast Pipe and Nail Embedded Wood
Standards AHRI Compliant, CSA Certified, LWH, UL EPH Listed, UL Listed
Temp. Range 120 Degrees to 180 Degrees F
Vent Type Standard
Item - Water Heaters Electric Water Heater
Water Connection 1-1/2 in NPT
Recovery @ 100 F Rise 112 gph
Phase - Water Heaters 1/3
Max. Pressure 150 psi
Number of Elements 6
Hot Outlet Type NPT
Tank Insulation Material Polyurethane
Minimum Delivered Temperature 90 Degrees F
Thermostat Mounting Surface
Maximum Delivered Temperature 190 Degrees F
Cold Inlet Type NPT
Water Connection Location Side, Top
Current 56 A
Equivalent BtuH 92,129 BtuH
Operating Voltage 480V AC
Recovery Rate @ Rise 102 gph @ 110 Degrees F, 112 gph @ 100 Degrees F, 124 gph @ 90 Degrees F, 140 gph @ 80 Degrees F, 160 gph @ 70 Degrees F, 186 gph @ 60 Degrees F, 223 gph @ 50 Degrees F, 80 gph @ 140 Degrees F, 86 gph @ 130 Degrees F, 93 gph @ 120 Degrees F
Automatic Thermostat Yes
Maximum Recovery Flow Rate 279 gph @ 40 Degrees F
Power Consumption 27,000 W
Thermal Efficiency 98 %
Included Valves Drain, Temperature and Pressure Relief
Tank Lining Material Vitreous Glass
Market Commercial
Element Material Stainless Steel
Maximum Water Pressure 150 psi
Country of Origin United States
