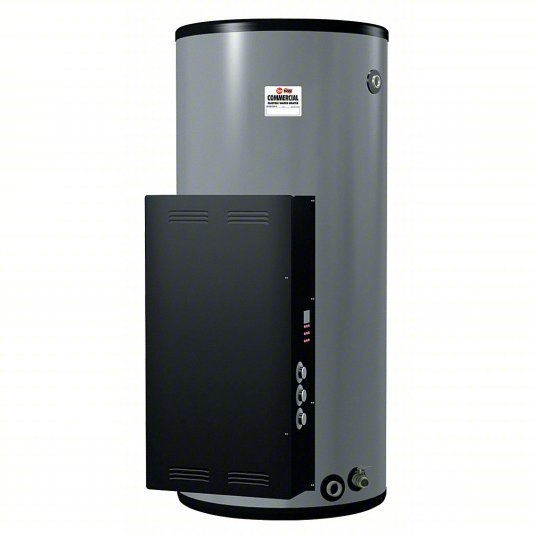

Rheem ES120-24-G Electric Water Heater 480V AC, 120 gal, 24,000 W, Single/Three Phase, 67.6 in Ht

UPC: 203524612678 | Harmonization (Schedule B): 8516.10.0040

SKU KV21XP22
Original price $8,425.05 - Original price $8,425.05
Original price
$8,425.05
$8,425.05 - $8,425.05
Current price $8,425.05
Electric Water Heater, Operating Voltage 480V AC, Phase Single, Three, Equivalent BtuH 81,893 BtuH, First Hour Rating Not Applicable, Maximum Recovery Flow Rate 248 gph @ 40 Degrees F, Overall Height 67.6 in, Power Consumption 24,000 W, Tank Capacity 120 gal, Tank Diameter 30.25 in, Market Commercial, Number of Elements 6, Automatic Thermostat Yes, Cold Inlet Size 1 1/2 in, Cold Inlet Type NPT, Current 50 A, Element Material Stainless Steel
Commercial / Residential Commercial
Water Heater Design Whole House
Tank Capacity - Plumbing 119.9 gal
Voltage - Water Heaters 480
Phase - Water Heaters 1/3
Total Watts 24,000 W
Recovery @ 120 F Rise 83 gph
Residential / Commercial Commercial
Industry Type Commercial
Recovery @ 130 F Rise 76 gph
Recovery @ 50 F Rise 199 gph
Application Ferrous / Non-Ferrous Metal Over 1/8", S/S Tube, PVC, Cast Pipe and Nail Embedded Wood
Compliance Exceeds Energy Effeciency Codes of all States. Design Certified by Underwriters Laboratory (UL) to Meet UL Standard 1453 and UL/NSF005., Tested According to DOE Test Procedures and Exceed the Minimum Energy Factor Requirements of Current ASHRAE Standards
Recovery @ 90 F Rise 110.0 gph
Recovery @ 100 F Rise 99 gph
Temp. Range 120 Degrees to 180 Degrees F
Recovery @ 140 F Rise 71 gph
Max. Pressure 150 psi
Vent Type Standard
Features Inputs of 3KW to 108KW, Four Voltages to choose from, Lifeguard Stainless Steel Elements, 98% Thermal Effeciency, System Sentenal, Full Port/Full Flow Brass Drain Valve
Recovery @ 70 F Rise 142 gph
Tank Capacity 120 gal
Connection Location Cold Side/Hot Top
Amps AC 29 for 3 Phase, 50 for 1 Phase
Includes Brass Drain Valve, Factory-Installed T&P Valve
Standards AHRI Compliant, ASME, CSA Certified, LWH, UL EPH Listed, UL Listed
Fuel Type Electric
System of Measurement Inch
Item Electric Water Heater
Number of Elements 6
Recovery @ 110 F Rise 90 gph
Water Connection 1-1/2 in NPT
Phase Single, Three
Connection Type NPT
Maximum Water Pressure 150 psi
Current 50 A
Minimum Delivered Temperature 90 Degrees F
Water Connection Location Side, Top
Automatic Thermostat Yes
Market Commercial
Power Consumption 24,000 W
Recovery Rate @ Rise 110 gph @ 90 Degrees F, 124 gph @ 80 Degrees F, 142 gph @ 70 Degrees F, 165 gph @ 60 Degrees F, 199 gph @ 50 Degrees F, 7 gph @ 140 Degrees F, 76 gph @ 130 Degrees F, 83 gph @ 120 Degrees F, 90 gph @ 110 Degrees F, 99 gph @ 100 Degrees F
Operating Voltage 480V AC
Included Valves Temperature and Pressure Relief
Element Material Stainless Steel
Thermal Efficiency 98 %
Thermostat Mounting Surface
Maximum Recovery Flow Rate 248 gph @ 40 Degrees F
Tank Lining Material Vitreous Glass
Equivalent BtuH 81,893 BtuH
Maximum Delivered Temperature 190 Degrees F
Hot Outlet Type NPT
Cold Inlet Type NPT
Tank Insulation Material Polyurethane
