Rheem ES120-18-G Electric Water Heater 480V AC, 120 gal, 18,000 W, Single/Three Phase, 67.6 in Ht - KVM Tools Inc.KV21XP21

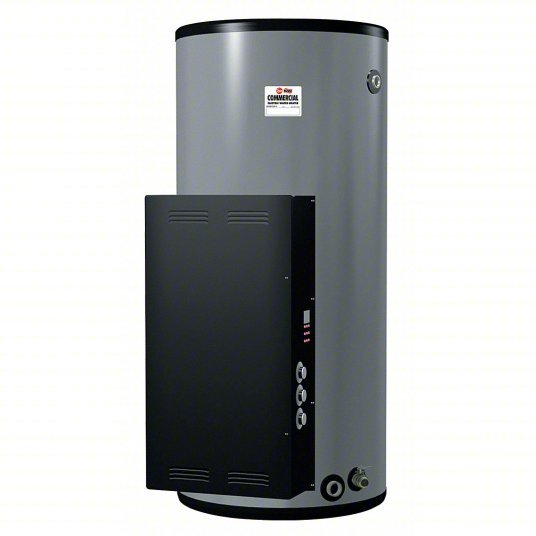

Rheem ES120-18-G Electric Water Heater 480V AC, 120 gal, 18,000 W, Single/Three Phase, 67.6 in Ht

UPC: 203524006552 | Harmonization / Schedule B : 8516.10.0040

Country of Origin: United States | Shipping Weight: 414 lbs

$8,281.93 - $8,281.93
$8,281.93
$8,281.93 - $8,281.93
$8,281.93
Sub-brand Commercial Water Heater
Product Type Electric Tank Water Heater
Market Commercial
Tank Capacity 120 gal
Operating Voltage 480V AC
Power Consumption 18,000 W
Current 38 A
Phase Single; Three
Recovery Rate @ Rise 106 gph @ 70°F; 53 gph @ 140°F; 57 gph @ 130°F; 62 gph @ 120°F; 68 gph @ 110°F; 74 gph @ 100°F; 83 gph @ 90°F
Max. Recovery Flow Rate 149 gph @ 50°F
Tank Outer Shell Material Steel
Tank Lining Material Vitreous Glass
Element Material Stainless Steel
Tank Outer Shell Finish Porcelain Enamel
Equivalent BtuH 61,420 BtuH
Thermostat Mounting Surface
Tank Insulation Material Polyurethane
Min. Delivered Temperature 120 °F
Max. Delivered Temperature 181 °F
Max. Water Pressure 150 psi
Overall Width 30.3 in
Overall Depth 36 in
Overall Height 67.6 in
Tank Diameter 30.25 in
Height to Hot Outlet 67.6 in
Height to Cold Inlet 4.8 in
Cold Inlet Type NPT
Hot Outlet Type NPT
Cold Water Inlet Size 1-1/2 in
Hot Water Outlet Size 1-1/2 in
Height to T and P Valve 58.75 in
Water Connection Location Side
Number of Elements 3
Included Valve Type Drain; Temperature and Pressure Relief
Automatic Thermostat Yes
Thermal Efficiency 98 %
Standards AHRI Compliant; CSA Certified; LWH; UL EPH Listed; UL Listed
Manufacturer Warranty Length 1 yr Limited Parts; 3 yr Limited Tank
Country of Origin USA
