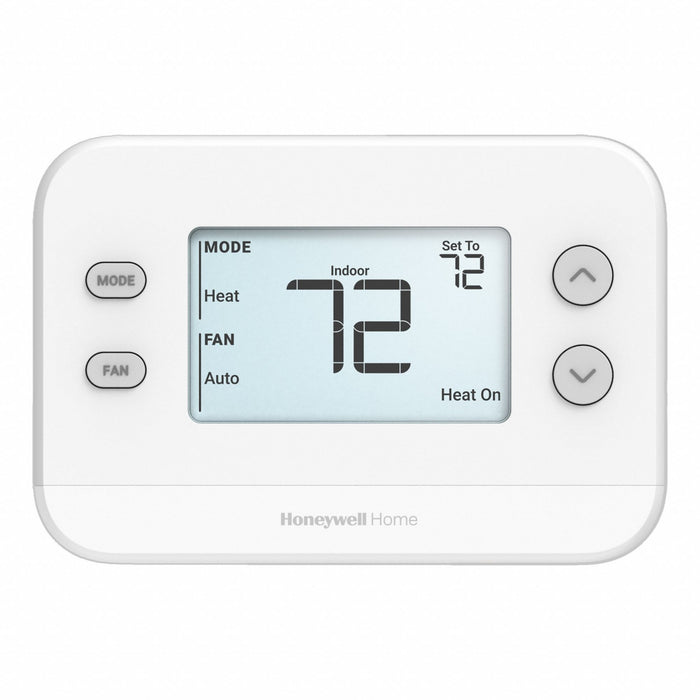

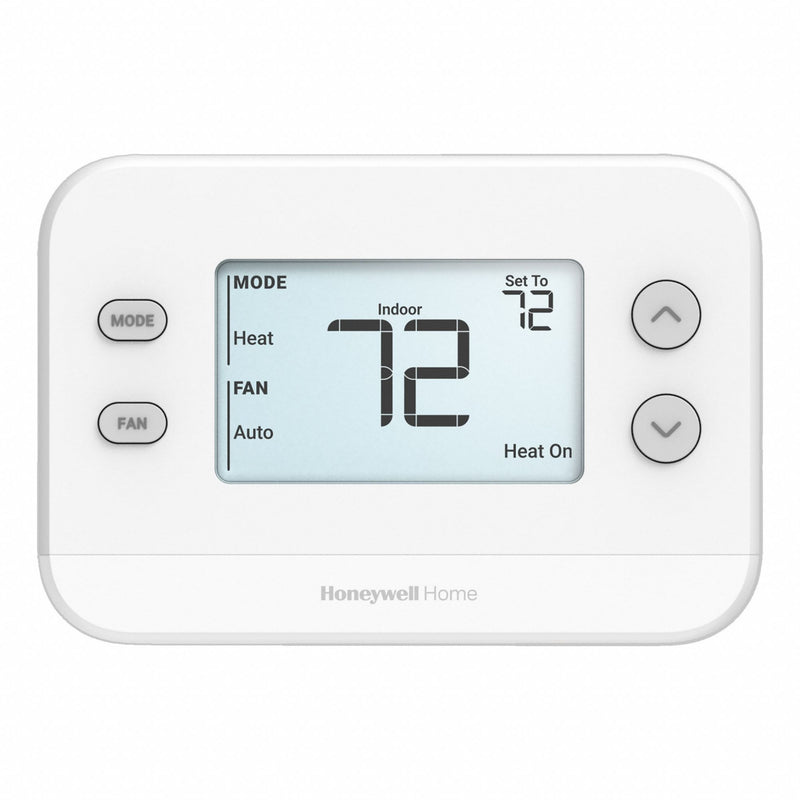

Resideo TH1320U4002 Low Voltage Thermostat, Heat and Cool, Auto and Manual, Auto-On-Circulate, Horizontal

Resideo TH1320U4002 Low Voltage Thermostat, Heat and Cool, Auto and Manual, Auto-On-Circulate, Horizontal

UPC: | Harmonization / Schedule B : 9032.10.0030

Country of Origin: Mexico | Shipping Weight: 0.75 lbs

$112.22 - $112.22
$112.22
$112.22 - $112.22
$112.22

Low Voltage Thermostat, Heat and Cool, Automatic and Manual, Compatible System Type Electric Forced Air Furnaces, Gas Forced Air Furnaces, Heat Pump without Aux, Push Button, Dehumidification Control No, Differential Type Adjustable, Digit Size Standard, Digital, Dual Transformer Compatible Yes, Fan Settings Auto-On-Circulate, Humidification Control No, Includes Positive Off Yes, Minimum Control Temperature 50 Degrees F, Maximum Control Temperature 99 Degrees F

Voltage 24V AC
Dual Transformer Compatible Yes
Operating Humidity Range 5% to 90% RH
Pilot Duty Rating 24v/60Hz/0.20A
Compatible System Type Electric Forced Air Furnaces, Gas Forced Air Furnaces, Heat Pump without Aux
Housing Color White
Number of Heating Stages - Conventional System 2
Terminal Designations C, E, G, K, L, O/B, R, RC, S, W, W2-AUX, Y, Y2
Key Pad Lockout Yes
Temperature Limiting No
Shape Rectangle
Thermostat Type Low Voltage
Housing Material Plastic
Number of Cooling Stages - Heat Pump System 2
Electrical Connection Type Battery, Hardwired
Number of Relay Outputs 3
Millivolt Compatible Yes
Contact Rating 24 V AC
Number of Heating Stages - Heat Pump System 3
Maximum Control Temperature 99 Degrees F
Number of Relay Inputs 3
Dehumidification Control No
Temperature Scale Fahrenheit/Celsius
Standards UL Listed
Battery Type (2)AA Batteries
Amperage 1 A
Temporary Temperature Hold No
Maximum Operating Temperature 120 Degrees F
Filter Change Reminder Yes
Humidification Control No
Minimum Operating Temperature 32 Degrees F
Backlit Screen Color Blue
Temperature Differential +/-1 Degrees F
Minimum Control Temperature 50 Degrees F
Fan Settings Auto-On-Circulate
Control Type Push Button
Frequency 60 Hz
Product Type Low Voltage Thermostat
Application Heat and Cool
System Settings Auto-Heat-Cool-Off
Number of Zones 1
Mounting Direction Horizontal
Number of Cooling Stages - Conventional System 2
Maximum Operating Humidity 90 %
Changeover Type Automatic and Manual
Programming Capability Not Programmable
Temperature Sensitivity -3 to 3 Degrees F
Display Type Digital
Backlit Type Always On
Operating Temperature Range 32 Degrees to 120 Degrees F
Includes Positive Off Yes
Differential Type Adjustable
Temporary Program Override No
Minimum Operating Humidity 5 %
Includes AA Batteries, Decorative Cover Plate with J-Box Adaptor, Mounting Hardware, UWP Mounting Plate
Country of Origin Mexico
