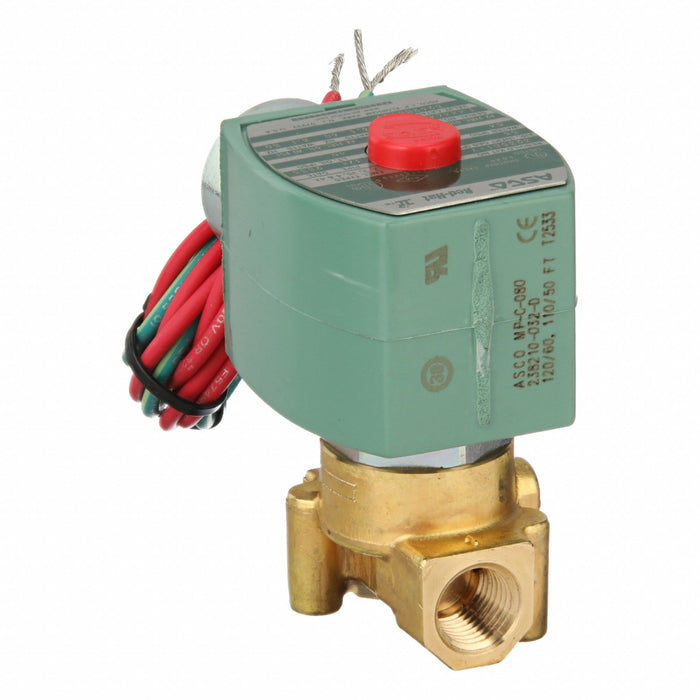

Redhat (ASCO) 8262H013V High-Flow Solenoid Valve, 2-Way 2-Position Normally Closed, 1/4 in NPT, Brass Body, FKM Seal, 120 V AC, 6.1 W, Direct Acting

Redhat (ASCO) 8262H013V High-Flow Solenoid Valve, 2-Way 2-Position Normally Closed, 1/4 in NPT, Brass Body, FKM Seal, 120 V AC, 6.1 W, Direct Acting

UPC: 094714832422 | Harmonization / Schedule B : 8481.80.9005

Country of Origin: Mexico | Shipping Weight: 1.1 lbs

$103.97 - $103.97
$103.97
$103.97 - $103.97
$103.97

ASCO Redhat 8262H013V high-flow 2-way normally-closed solenoid valve. Direct-acting design with brass body and FKM (Viton) seal for aggressive gases/liquids, ammonia, oxygen, fuel oil, biodiesel, natural gas/LPG, and more. 1/4 in NPTF inlet/outlet, 7/32 in orifice, 0.73 Cv. 120 V AC 60 Hz, 6.1 W. Max pressure differentials: 54 psi water, 55 psi air/inert gas, 40 psi light oil. Mount horizontal or vertical. Includes seal and coil.

For Media Aggressive Gases, Aggressive Liquids, Air, Ammonia, Biodiesel Fuel, Cryogenic Fluids, Fuel Oil, Hot Water, Inert Gases, Light Oil, Liquid Propane Gas, Natural Gas, Oxygen, Steam, Water
Application Boilers, Burners, Car Wash Equipment, Compressors, Dishwashing and Laundry Equipment, Food Processing, Pumps
Valve Type High Flow
Mounting Orientation Horizontal or Vertical
Operation Type Direct Acting
Valve Ways 2-Way
Valve Positions 2-Position
Body Material Brass
Seal Material FKM
Nominal Pipe Size 1/4 in
Inlet Connection Type NPTF
Outlet Connection Type NPTF
Voltage 110V AC, 120V AC
Wattage 6.1 W
Frequency 60 Hz
Electrical Connections 1/2" Conduit w/ 18" Leads
Coefficient of Volume (Cv) 0.73
Orifice Diameter 7/32 in
Min. Operating Pressure Differential 0 psi
Max. Operating Pressure Differential - Water 54 psi
Max. Operating Pressure Differential - Light Oil 40 psi
Max. Operating Pressure Differential - Air/Inert Gas 55 psi
