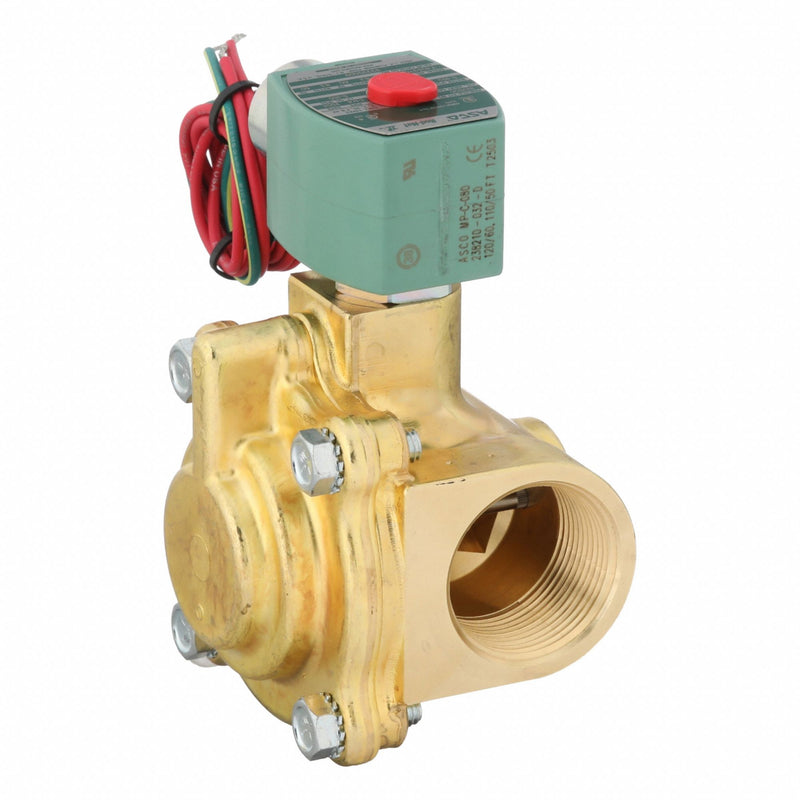

Redhat 8221G009 Solenoid Valve, 2-Way, Normally Closed, 1 1/4 in Pipe Size, 110V AC/120V AC, Slow-Closing

Redhat 8221G009 Solenoid Valve, 2-Way, Normally Closed, 1 1/4 in Pipe Size, 110V AC/120V AC, Slow-Closing

UPC: | Harmonization / Schedule B : 8481.80.9005

Country of Origin: Mexico | Shipping Weight: 5.15 lbs

$1,287.84 - $1,287.84
$1,287.84
$1,287.84 - $1,287.84
$1,287.84

The ASCO 8221G009 is a pilot-operated, slow-closing solenoid valve for controlling the flow of water and light oil. It features a normally closed 2-way, 2-position valve design with a brass body and NBR seals. This valve includes the coil and sealing components, providing operational control at 120V AC with a coil wattage of 6.1 W. It is rated for automated flow control in corrosive indoor or outdoor environments. The valve supports a maximum fluid temperature of 180°F and operates within a pressure range of 5 to 150 psi differential for water and hot water.

For Media Water
Valve Ways 2-Way
Valve Starting Configuration Normally Closed
Inlet Connection Type NPTF
Outlet Connection Type NPTF
Voltage 110V AC; 120V AC
Valve Type Slow-Closing
Operation Type Pilot Operated
Seal Material NBR
Operating Pressure Differential - Maximum 150 psi Hot Water, Water
Operating Pressure Differential - Minimum 5 psi Water
Application Autoclave, Laundry, Molding, Sterilizers
Body Material Brass
IP Rating IP66
Electrical Connections 1/2" Conduit w/18" Leads
Valve Design 2-Way/2-Position
Coil Enclosure Without Junction Box, Watertight
Coil Insulation Class F
Standards CSA, UL Listed
Wattage 6.1 W
Includes Coil Yes
Environmental Rating Corrosive, Hazardous, Indoor, Outdoor
NEMA Enclosure Rating 1, 2, 3, 3S, 4, 4X
Operating Pressure Differential Steam - Maximum Not Rated
Operating Pressure Differential Light Oil - Maximum Not Rated
Thread Type NPT
Operating Pressure Differential Air/Inert Gas - Maximum Not Rated
Frequency 50 Hz, 60 Hz
Operating Pressure Differential Water - Maximum 150 psi
Includes Seal Yes
Operating Pressure Differential Water - Minimum 5 psi
Coefficient of Volume (Cv) 3
Fluid Temperature - Maximum 180 Degrees F
Valve Positions 2-Position
Operating Pressure Differential Hot Water - Maximum 150 psi
Orifice Diameter 1-1/8 in
Overall Height 5-9/16 in
Overall Length 3-11/16 in
Overall Width 3-9/16 in
Country of Origin Mexico
