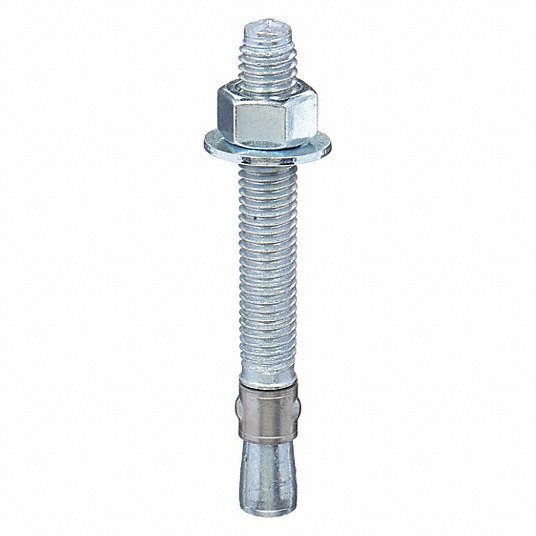

Red Head WS-3826 Trubolt Wedge Anchor, 3/8" Dia., 2-3/4" L, Carbon Steel Zinc Plated, 50 PK
by Red Head
$71.80
SKU KV3A446
Wedge Anchor, System of Measurement Inch, Anchor Diameter 3/8 in, Thread Size 3/8 In.-16, Overall Length 2 3/4 in, Thread Length 1 5/8 in, Material Steel, Material Grade/Class Not Graded, Finish Zinc Plated, Compatible Material Concrete, Drill Bit Size 3/8 in, Minimum Installation Depth 1 3/4 in, Minimum Material Thickness 4 in, Ultimate Shear Strength (4,000 psi Concrete) 2,620 lb, Ultimate Tension Strength (4,000 psi Concrete) 2,240 lb, Wedge Anchor Type Wedge Anchor, Seismic Approved No
Details
| Item | Wedge Anchor |
| Compatible Material | Concrete |
| Sub-Brand | Trubolt |
| Material | Carbon Steel |
| Finish | Zinc Plated |
| Seismic Approved | No |
| Maximum Material Thickness | 7/8" |
| Embedment In Concrete | 1 1/2 in |
| Material Grade | Not Graded |
| Ultimate Pullout (Lb.) | 2,240 lb |
| Thread | Fully Threaded |
| Includes | Nuts and Washers |
| Ultimate Shear (Lb.) | 2,620 lb |
| ICC Approved for Cracked Concrete | No |
| Industry Standards | A-A-1923A Type 4 |
| Package Quantity | 50 |
