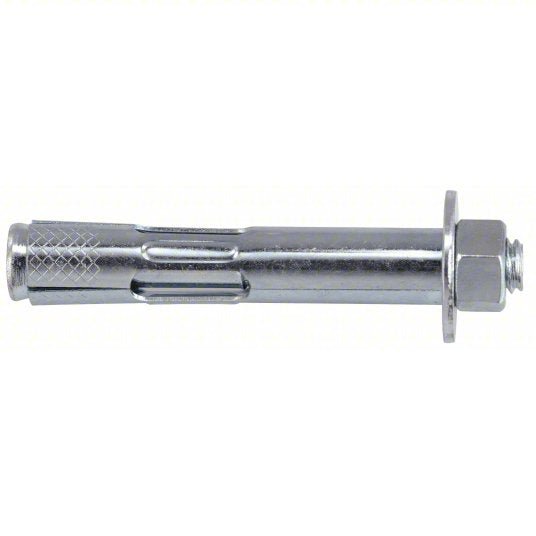

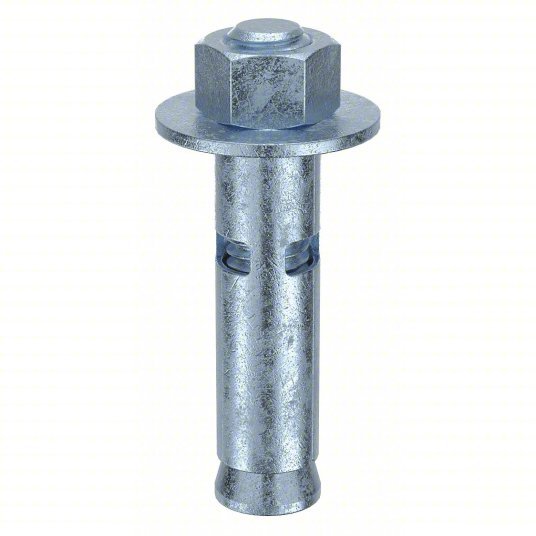

Red Head HN-1222 Sleeve Anchor 2 1/4 in Overall Lg, 1/2 in Dia, 3/8"-16 Thread Size, Steel, Hex, 25 PK

UPC: 662520021110 | Harmonization (Schedule B): 7318.15.2095

SKU KV3A476
Original price $37.26 - Original price $37.26
Original price
$37.26
$37.26 - $37.26
Current price $37.26
Sleeve Anchor, System of Measurement Inch, Anchor Diameter 1/2 in, Overall Length 2 1/4 in, Thread Size 3/8 In.-16, Drive Type External Hex, Head Type Hex, Material Steel, Finish Zinc Plated, Drill Bit Size 1/2 in, Compatible Material Block, Brick, Concrete, Minimum Installation Torque 20 ft-lb, Maximum Installation Torque 20 ft-lb, Minimum Installation Depth 1 7/8 in, Maximum Material Thickness 3/8 in, Maximum Ultimate Shear Strength 5,000 lb, Maximum Ultimate Tension Strength 4,400 lb
Compatible Material Concrete; Hollow Block; Brick
Sub-Brand Dynabolt
Material Type Carbon Steel
Finish Zinc Plated
Head Type Hex Nut
Drive Type Hex
ICC Approved for Cracked Concrete No
Maximum Material Thickness 3/8"
Ultimate Shear Strength (4,000 psi Concrete) 4,500 lb
Ultimate Tension Strength (4,000 psi Concrete) 4,400 lb
ICC Approved for Un-Cracked Concrete Yes
Industry Standards A-A-1923A
Material Steel
Max. Work Thickness 3/8 in
Min. Embedment 1 7/8 in
System of Measurement Inch
Maximum Ultimate Tension Strength 4,400 lb
Material Quality Standards ASTM E488
Minimum Ultimate Shear Strength 3,250 lb
Manufacturer Location Globally Sourced
Series Dynabolt
Maximum Installation Torque 20 ft-lb
Minimum Installation Torque 20 ft-lb
Maximum Ultimate Shear Strength 5,000 lb
Minimum Ultimate Tension Strength 2,220 lb
