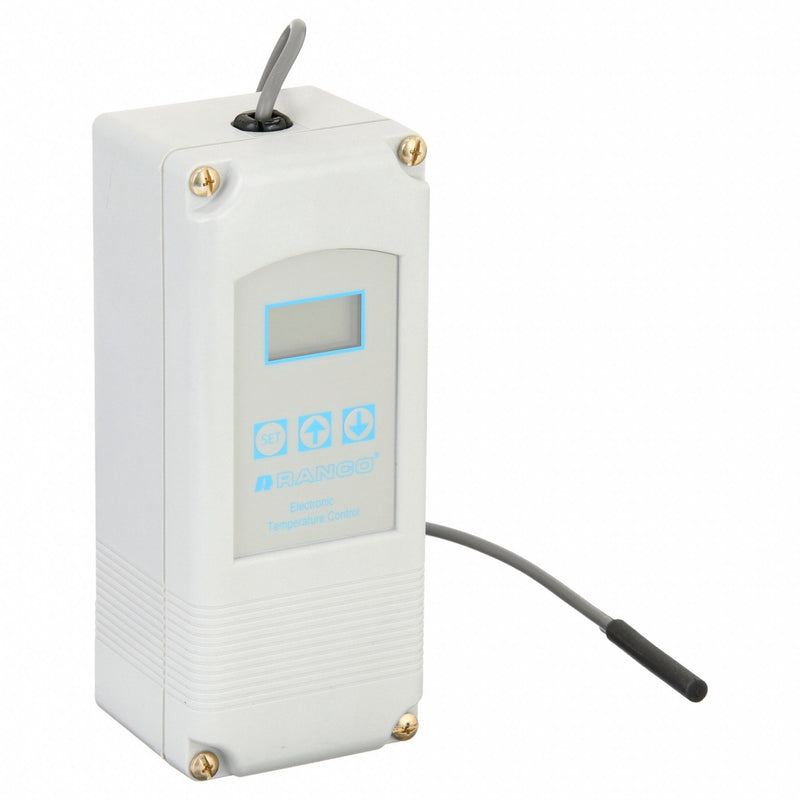

Ranco ETC-111000-000 Temperature Control, Single Stages, Heat or Cool, -30°F to 220°F, Digital, 1, SPDT, Universal

Ranco ETC-111000-000 Temperature Control, Single Stages, Heat or Cool, -30°F to 220°F, Digital, 1, SPDT, Universal

UPC: 662013924393 | Harmonization / Schedule B : 9032.10.0030

Country of Origin: Mexico | Shipping Weight: 1.2 lbs

$168.93 - $168.93
$168.93
$168.93 - $168.93
$168.93

Temperature Control, Temperature Control Function Heat or Cool, Product Type Temperature Control, Number of Stages Single, Contact Form SPDT, NEMA Rating 1, IP Rating IP67, Maximum Control Temperature 220 Degrees F, Minimum Control Temperature -30 Degrees F, Maximum Temperature Differential Setting 30 Degrees F, Minimum Temperature Differential Setting 1 Degrees F, Display Type Digital, Input Voltage 120V AC, 208V AC, 240V AC, Variable Output Voltage No, Overall Height 6 1/2 in

Height 6 1/2 in
Depth 2 1/2 in
Width 2 3/4 in
Sensing Bulb Length 2 in
Capillary Length 96"
Overall Height 6 1/2 in
Sensing Bulb Diameter 1/4 in
Overall Width 2 3/4 in
Overall Depth 2 1/2 in
Type Electronic Temperature Control
Sensor Type Thermistor
Voltage 120/208/240VAC
For Use With Cooling, Heating, Refrigeration
Includes 8 ft Foot Cable
Input Voltage 120V AC, 208V AC, 240V AC
Standards Class 4813 02, CSA Certified LR68340, UL File E94419, UL Guide No. XAPX
Number of Relay Inputs 1
Number of Relay Outputs 1
Switch Action Close on Rise, Open on Rise
Display Type Digital
Application Cooling Control, Heating Control
Number of Stages Single
Mounting Vertical or Horizontal
Display LCD
Number of SPDT Outputs 1
Product Type Temperature Control
Ambient Humidity 0% to 95% RH
Housing Material Polyethilene
NEMA Rating 1
Housing Color Gray
Full Load Current @ 120V AC 16 A
Horsepower @ 120V AC 1 hp
IP Rating IP67
Maximum Control Temperature 220 Degrees F
Temperature Control Function Heat or Cool
Horsepower @ 240V AC 1 hp
Maximum Temperature Differential Setting 30 Degrees F
Number of Sensors Included 1
Variable Output Voltage No
Contact Form SPDT
Minimum Control Temperature -30 Degrees F
Number of Sensor Inputs 1
Power Consumption 100 MVA
Resistive Load Current @ 120V 96 A
Minimum Temperature Differential Setting 1 Degrees F
Resistive Load Current @ 240V 48 A
Full Load Current @ 240V AC 8 A
Compatible with Series Universal
Country of Origin Mexico
