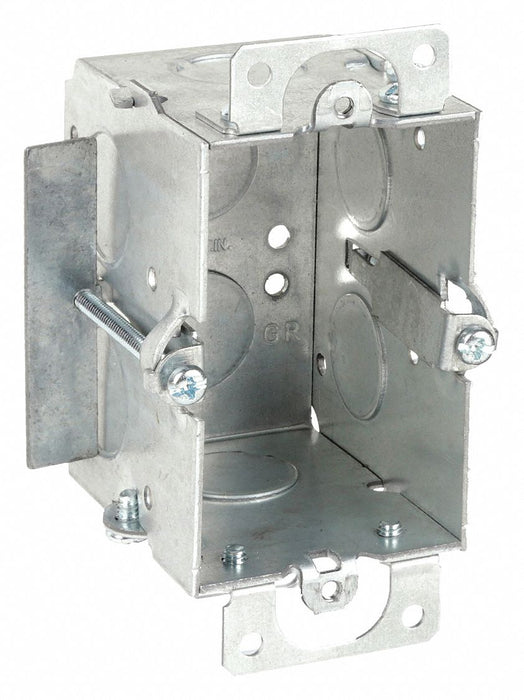

Raco 509 Electrical Box

Raco 509 Electrical Box, 1-Gang Switch, 12.5 cu in, Steel, 3 in. x 2 in. x 2-1/2 in. Deep

UPC: 050169005095 | Harmonization / Schedule B : 7326.90.8688

Country of Origin: China | Shipping Weight: 0.612 lbs

$14.33 - $14.33
$14.33
$14.33 - $14.33
$14.33

3 in. x 2 in. Switch Box, Gangable, 2-1/2 in. Deep, Four 1/2 in. KO's, Plaster Ears, Old Work •3 in. x 2 in., 2-1/2 in. deep •Gangable switch boxes offer the option of constructing a box to hold two or more devices •With proper fitting can be used for conduit, NMSC, armored, metal clad, flex cable •Supplied with four 1/2 in. knockouts •Includes plaster ears and clips for "cut-in" or "old work" applications •12.5 cu. in. capacity •Acceptable for use in 2-hour fire rated walls

Capacity 12.5 cu in
Box Type Switch
Number of Gangs 1 Gang
Material Steel
Box Shape Rectangular
Color Silver
Number of 1/2 In. Back Knockouts 2
Number of 1/2 In. Side Knockouts 6
Standards cULus Listed
Wiring System Conduit
Fire Resistance Yes
Plaster Ears Yes
For Construction Type Remodel
Knockouts 1/2 in
Country of Origin China
