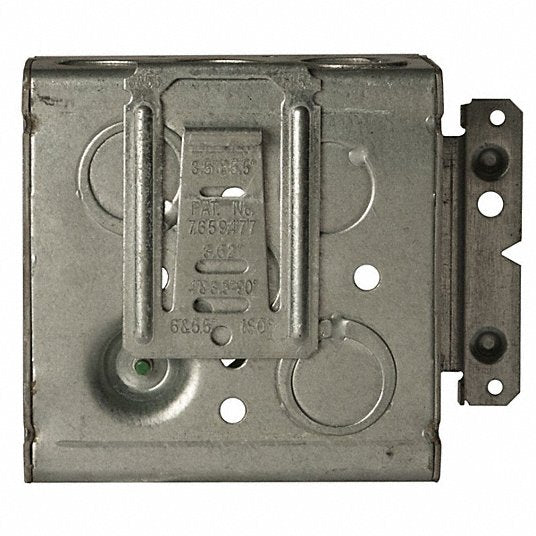

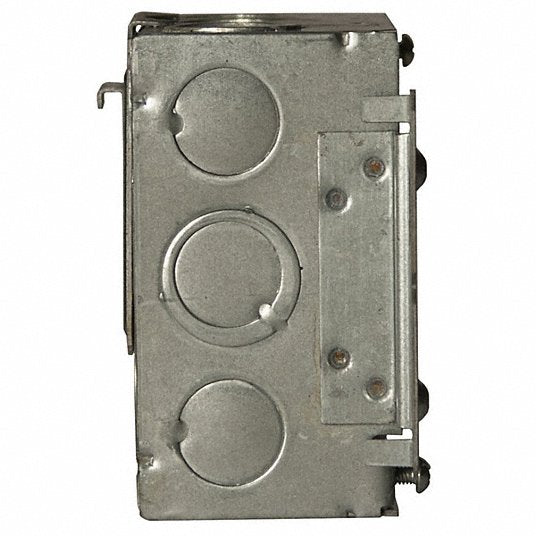

Raco 232H Electrical H Box, 4 in, 30.3 cu. in.
UPC: 050169943298 | Harmonization (Schedule B): 8536.90.8530
SKU KV2NYF3
Original price
$20.15
-
Original price
$20.15
Original price
$20.15
$20.15
-
$20.15
Current price
$20.15
Electrical Box, Box Type Square with Bracket, Number of Gangs 2, Bracket Type H Style, Capacity 30.3 cu in, Material Galvanized Steel, Number of 1/2 In. Back Knockouts 4, Number of 1/2 In. Side Knockouts 12, Clamp Type -, Number of 3/4 In. Back Knockouts 2, Number of 3/4 In. Side Knockouts 8, Nominal Depth 2 1/8 in, Nominal Length 2 1/8 in, Nominal Width 4 in, Color Silver, Standards UL
| Item | Electrical Box |
| Box Type | Square with Bracket |
| Material | Galvanized steel |
| Number of Gangs | 2 |
| Capacity | 30.3 cu. in. |
| Number of 1/2 In. Side Knockouts | 12 |
| Number of 1/2 In. Back Knockouts | 4 |
| Color | Silver |
| Number of 3/4" Back Knockouts | 2 |
| Bracket Type | H Style |
| Standards | UL |
| Number of 3/4" Side Knockouts | 8 |
| Number of Gang | 2-Gang |
| Knockouts | 1/2 in;1/2 - 3/4 in Combination (TKO) |
| Features | UBS integrated support provides bracing on back of box for wall cavities between 2-1/2 in - 6 in. thickness, H/M; Combination screw heads allow quick installation; Welded construction; Ten 1/2 in. knockouts and six TKO knockouts; UL Listed; 30.3 cu. in. capacity; Raised ground, 8 in. #12 solid copper pigtail; Acceptable in 2-hour fire rated walls |
| Product Type | Electrical Box |
| Certified Listed | UL Listed |
| Fire Resistance | Yes |
| Raised Ground | Yes |
| Number of Gang(s) | 2-Gang |
| Bracket Setback | 0.375 |
| Type | Box |
| Drawn or Welded | Welded |
| Cubic Capacity | 30.3 cu.in |
| Wiring System | Conduit |
| Standard | UL Listed |
| Package Quantity | 1 |
