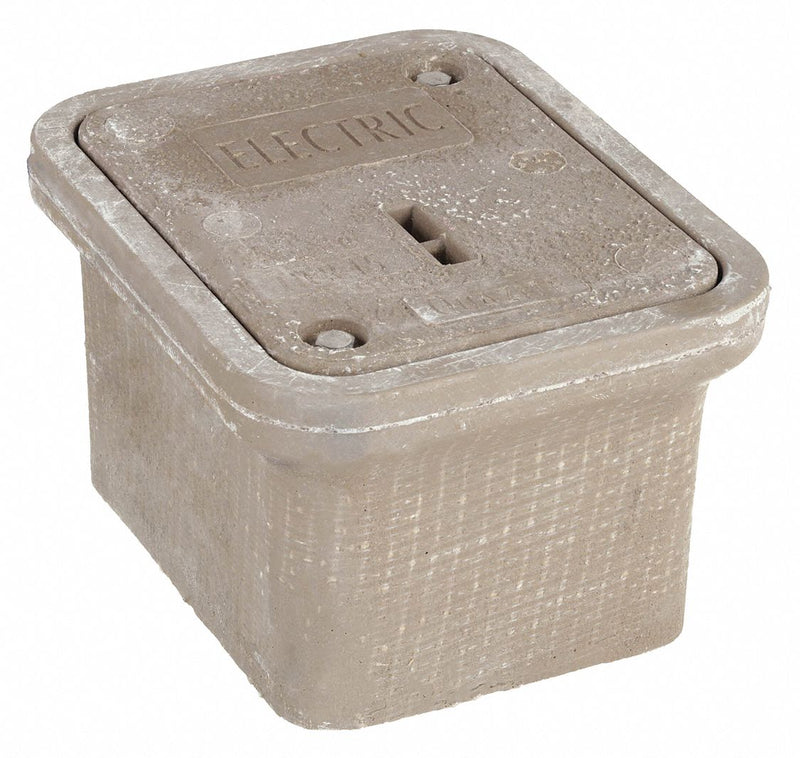

Quazite PC0608Z80017 Underground Enclosure Assembly, 8 1/2 in x 6 1/2 in x 6 in Usable Int., Cover Logo Electric

Quazite PC0608Z80017 Underground Enclosure Assembly, 8 1/2 in x 6 1/2 in x 6 in Usable Int., Cover Logo Electric

UPC: 662037205652 | Harmonization / Schedule B : 6810.99.0080

Country of Origin: United States | Shipping Weight: 19.52 lbs

$406.94 - $406.94
$406.94
$406.94 - $406.94
$406.94

Underground Enclosure Assembly, Style - Underground Enclosure PC, Cover Logo Electric, Usable Interior Length 8 1/2 in, Usable Interior Width 6 1/2 in, Usable Interior Height 6 in, Overall Length 11 in, Overall Width 9 in, Overall Height 6 3/4 in, Cover Bolt Type (2) 3/8-16 x 1 1/2 UNC Stainless Steel Hex Head Bolts, Load Rating - Underground Enclosure 15,000 lb

Overall Height 6-3/4 in
Overall Length 11 in
Overall Width 9 in
Usable Interior Height 6 in
Usable Interior Width 6-1/2 in
Usable Interior Length 8-1/2 in
Cover Pull Slot Size 1/2 in x 2 in
Nominal Length (In.) 8-1/2
Nominal Dimension 8-1/2"L x 6-1/2"W x 6"H
Nominal Height (In.) 6
Nominal Width (In.) 6-1/2
Wire Rope Length 11 in
CAD Available Yes
Cover Logo Electric
Load Capacity - Maximum 15,000 lb
Bottom Style Open
Assembly Style PC
Cover Bolt Type 2 Stainless Steel Hex Head Bolts 3/8-16 x 1-1/2 UNC
Material Monolithic Polymer Concrete
Color Gray
Includes Cover
Standards UL Listed to ANSI/SCTE 77 2007 Tier 15
Description/Special Features Non-Deliberate Traffic Only, Stackable
Country of Origin United States
