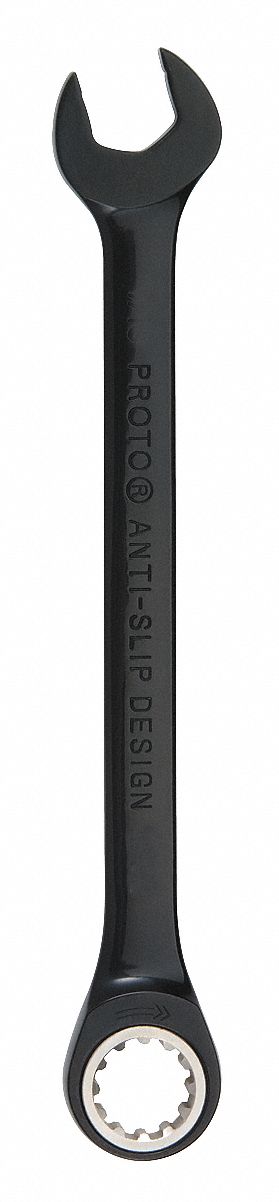

Proto JSCR24 Combination Wrench, Alloy Steel, Black Chrome, 3/4 in Head Size, 9 3/4 in Overall Lg, Offset
UPC: 662679972318 | Harmonization / Schedule B : 8204.11.0030
Country of Origin: Taiwan | Shipping Weight: 0.48 lbs
UPC: 662679972318 | Harmonization / Schedule B : 8204.11.0030
Country of Origin: Taiwan | Shipping Weight: 0.48 lbs
Fractional spline wrenches can be used on fractional 4, 6, 12 point, spline and Torx® fasteners Box end is countersunk for easy application to the fastener Spline design was created for use with specialty spline bolts which are used when weight and size of bolt heads must be minimized Additional Features: Spline design enables the wrench to contact conventional fasteners away from the corners, which applies force over a larger area, reducing risk of fastener scoring and helps prevent rounding of the corners and other fasteners damage that could lead to Foreign Object Damage (FOD) The high contact surface area which is away from fastener points enables turning of highly rounded fasteners Anti-Slip Design (ASD) open end Black chrome finish is corrosion resistant and visually distinctive
| Overall Length | 9 3/4 in |
|---|---|
| Size | 3/4" |
| Wrench Head Sizes | 3/4 in x #24 |
| Head Size | 3/4 in |
| Head Thickness | 1/4 in |
| Wrench Length Style | Standard |
| Wire Rope Length | 9 3/4 in |
| Length | 9 3/4 in |
| Finish | Black Chrome |
| Number of Points | 12 |
| SAE or Metric | SAE |
| Wrench Style | Combination, Non-Reversing, Anti-Slip, Open End, Spline |
| Material | Alloy Steel |
| Insulated | No |
| Wrench Product Grouping | Wrenches |
| Reversing | No |
| Wrench Shape | Straight |
| Wrench Material | Chrome Vanadium Steel |
| Min. Arc Swing | 5 Degrees |
| Offset | 15 Degrees |
| Head Movement | Fixed |
| Single End/Double End | Double End |
| Ratcheting Configuration | Open and Box End |
| Tether Capable | Standard Tool (Accessory Needed for Tethering) |
| Standards | ASME |
| Wrench Item | Ratcheting Combination Wrench |
| Box End Style | Spline |
| Flexible Head | No |
| Number of Geared Teeth | 76 |
| Box End Type | Spline Box End |
| Ratcheting | Yes |
| Opening Angle (Deg.) | 15 Degrees |
| Anti-Slip Design | Yes |
| Opening Type | Hex |
| Corrosion Resistant | Yes |
| Handle Color | Silver |
| Weight | 0.47 lb |
| Handle Type | One Piece |
| Head Offset Angle | 15 Degrees |
| Nonsparking | No |
| Head Type | Offset |
| Tether Style | Tether Capable |
| Non-Magnetic | No |
| Measurement Type | SAE |
| Country of Origin | Taiwan, Province of China |
