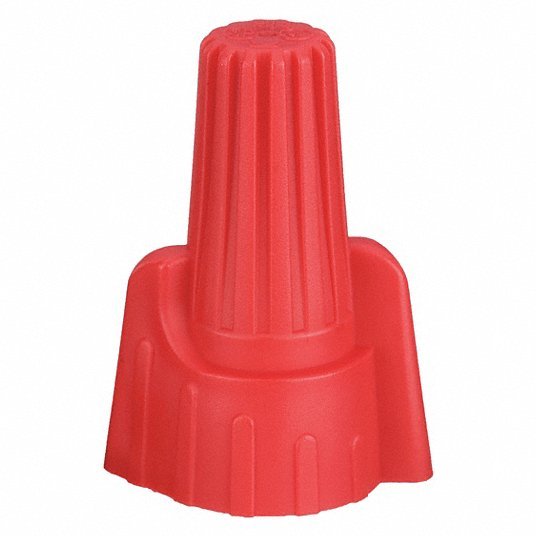

KVM Tools KV5UYJ8 Wire Connector Wing, Red, PK100
UPC: 190735599846 | Harmonization (Schedule B): 8546.90.0000
SKU KV5UYJ8
Original price
$18.35
-
Original price
$18.35
Original price
$18.35
$18.35
-
$18.35
Current price
$18.35
Twist On Wire Connector, Color Red, For Conductor Material Copper, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Minimum Wire Combination (3) 16 AWG, Maximum Wire Combination (5) 12 AWG, Contact Finish Zinc, Contact Material Steel, UL 94 Flammability Rating V-2, Maximum Conductors 6, Standards CSA Certified: 175604UL Listed: E113650, Wire Connector Style Wing, Compatible Installation Tool Model Number No. 5, Compatible with Product Type Light Fixtures & House Wiring
| Color | Red |
| Series | P13 |
| Max. Voltage | 600V AC |
| Wire Connector Style | Wing |
| Min. Wire Combination | (3) 16 AWG |
| Max. Wire Combination | (5) 12 AWG Solid |
| Application | General Purpose |
| Item | Twist On Wire Connector |
| Standards | CSA Certified: 175604UL Listed: E113650 |
| Minimum Operating Temperature | Not Applicable |
| Special Features | Deep Skirt Protects against Flash-Over, Square-Wire Spring Creates Secure Connections |
| Maximum Operating Temperature | 221 Degrees F |
| High Temperature Application | No |
| Contact Material | Steel |
| Compatible Installation Tool Model Number | No. 5 |
| For Conductor Material | Copper |
| Insulation Material | Thermoplastic |
| Contact Finish | Zinc |
| Compatible with Product Type | Light Fixtures & House Wiring |
| UL 94 Flammability Rating | V-2 |
| Maximum Conductors | 6 |
| RoHS Compliant | Yes |
| Maximum Voltage | 600 V |
| Maximum Wire Combination | (5) 12 AWG |
| Minimum Wire Combination | (3) 16 AWG |
| Package Quantity | 100 |
