PortaDot 50-25 Dot Marking Machine 50mm x 25mm Window

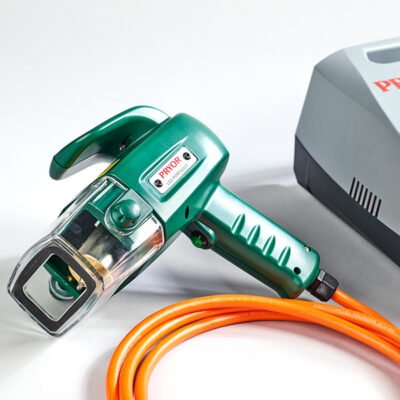

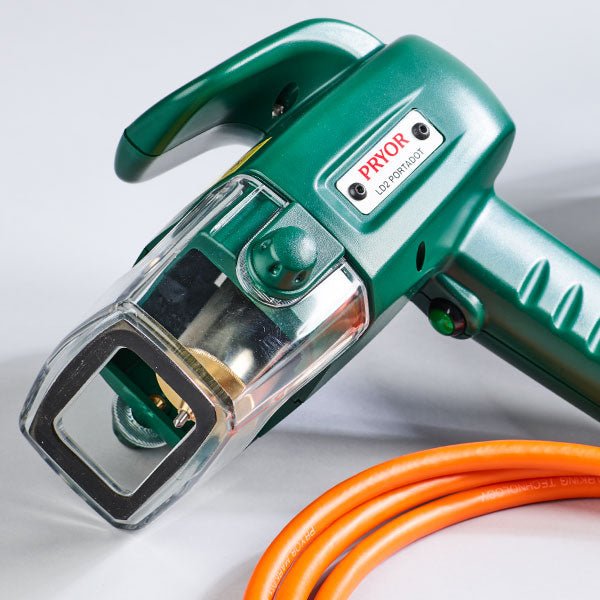

The Pryor PortaDot 50-25 is a versatile, lightweight handheld dot marking machine with a marking window of 50mm x 25mm. It provides a fast and portable method of dot-peen marking, otherwise known as dot marking. Ideal for marking permanent alphanumeric, logo or 2D barcode information onto high variety, immobile, large or heavy components.

• The standard machine is supplied with:
  • 1x flat mask
  • 1x V-mask
  • 3m cable
  • Mains powered controller

Features

• Portable, Lightweight Dot Peen Marking Machine
• 50mm x 25mm marking window
• Comes with Pryor’s 4000 Series Controller as standard
• Fully compatible with Pryor’s PC based Traceability Software
• Suitable for engraving identification marks, logo or 2D barcode information
• Can permanently mark most engineering materials up to a maximum hardness of 62Hrc
• Standard Character Sizes: 0.19mm – 49.9mm in increments of 0.19mm (5×7 font) or 0.25mm (7×9 font)
• Dimensions: 245mm(H) x 176mm (W) x 214mm (L)
• Weight: Marking head/cable: 2.3kg
• Drive Mechanism: lead screw
• Cable length: 3m standard (6m or 10m optional)
• Dot Mark output styles: 5 x 7,7 x 9,Varidot, 2D Data Matrix, HPGL, BMP Logos
• Controller connectivity options: 1 x RS232, 1 x USB (that has the option of being removed to create 2 x RS232) and digital I/O (8 in 6 out) connectivity. Optional Ethernet TCP/IP and optional Field Bus
• Controller memory capacity: up to 9000 layouts
• Controller features industrial grade 10.4 inch touchscreen with additional option of connecting an external keyboard
• On screen mark preview and trial run features
• Controller dimensions: 375mm x 335mm x 132 mm
• Controller weight: 6.5kg
• Power supply: AC Input 50/60Hz; 100-240VAC
• Optional battery powered controller: 36V Li-Ion 3.0Ah/108Wh battery
