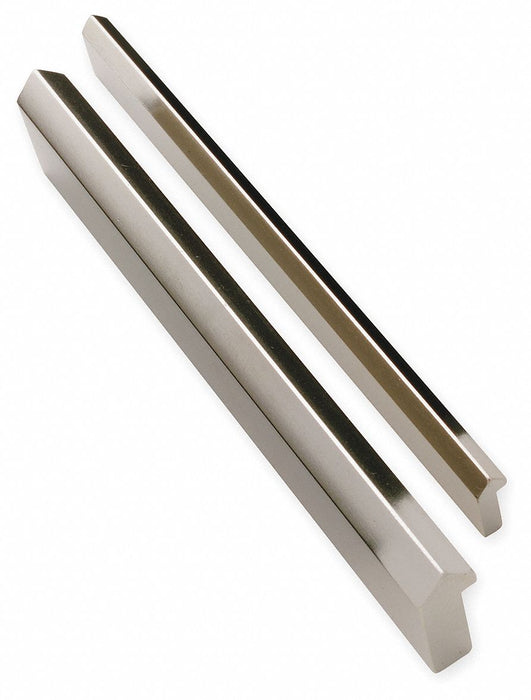

PBC Linear VRSD4-049.000 Drilled Linear Rail, V-Guide, Size 4, 49 in Length, 0.437 in Width, Stainless Steel

PBC Linear VRSD4-049.000 Drilled Linear Rail, V-Guide, Size 4, 49 in Length, 0.437 in Width, Stainless Steel

UPC: | Harmonization / Schedule B : 8482.99.0500

Country of Origin: United States | Shipping Weight: 5.1 lbs

$491.47 - $491.47
$491.47
$491.47 - $491.47
$491.47

Drilled Linear Rail, Overall Length 49 in, Overall Width 0.437 in, Overall Height 1.037 in, Rail Material Stainless Steel, Manufacturer Size 4, Number of Mounting Holes 13, Rail Finish Cold Roll, Rail Type Slide, System of Measurement Inch, For Use With V-Guide Wheels and Bushings, Operating Temperature - Maximum 180 Degrees F, Operating Temperature - Minimum 0 Degrees F, Mounting Hole Center to Center 4 in, Mounting Hole Center to Shaft End 2.5 in, Channel Material Stainless Steel

Overall Length 49 in
Overall Width 0.437 in
Overall Height 1.037 in
Thread Size 0.312 in or M8
Mounting Hole Size 0.344 in
Undercut Depth 0.314 in
Manufacturer Size 4
Type V-Guide
Rail Material Stainless Steel
Temp. Range (F) 0 - 248
Raceway 303 Stainless Steel
Number of Rail Holes 13
For Use With V-Guide Wheels and Bushings
Rail Finish Cold Roll
Mounting Hole Center to Center 4 in
Mounting Hole from Shaft End 0.5 in
Screw Type Low Profile Socket Head Cap
Number of Mounting Holes 13
Maximum Operating Temperature 248 Degrees F
Rail Type Slide
Raceway Material 303 Stainless Steel
Minimum Operating Temperature 0 Degrees F
Series V-Guide
Edge Angle 90 Degrees
Mounting Hole Center to Shaft End 2.5 in
Requires Lubrication Lubricant Not Required
System of Measurement Inch
Channel Material Stainless Steel
Load Direction Axial, Radial
Country of Origin United States
