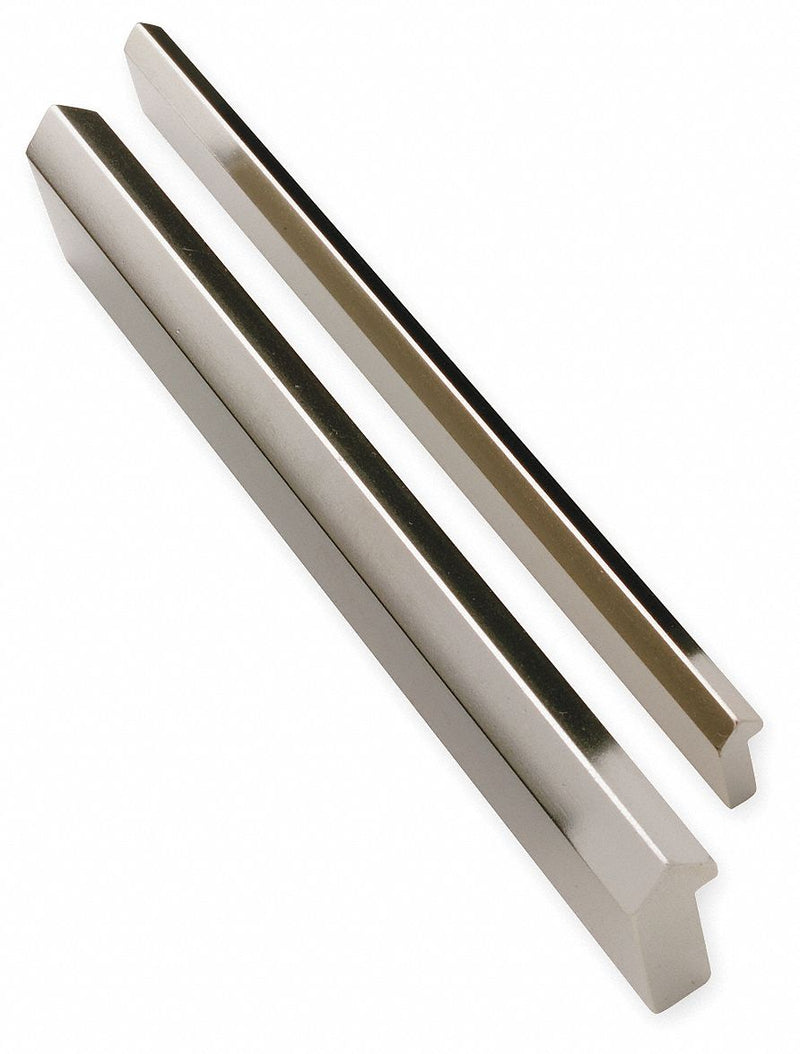

PBC Linear VRSD4-025.000 Drilled Linear Rail, V-Guide, Size 4, 25 in Length, 0.437 in Width, Stainless Steel

PBC Linear VRSD4-025.000 Drilled Linear Rail, V-Guide, Size 4, 25 in Length, 0.437 in Width, Stainless Steel

UPC: | Harmonization / Schedule B : 8482.99.0500

Country of Origin: United States | Shipping Weight: 2.62 lbs

$224.97 - $224.97
$224.97
$224.97 - $224.97
$224.97

Drilled Linear Rail, Overall Length 25 in, Overall Width 0.437 in, Overall Height 1.037 in, Rail Material Stainless Steel, Manufacturer Size 4, Number of Mounting Holes 7, Rail Finish Cold Roll, Rail Type Slide, System of Measurement Inch, For Use With V-Guide Wheels and Bushings, Operating Temperature - Maximum 180 Degrees F, Operating Temperature - Minimum 0 Degrees F, Mounting Hole Center to Center 4 in, Mounting Hole Center to Shaft End 2.5 in, Channel Material Stainless Steel

Type V-Guide
Rail Material Stainless Steel
Manufacturer Size 4
Overall Length 25 in
Overall Width 0.437 in
Overall Height 1.037 in
Mounting Hole Size 0.344 in
Thread Size 0.312 in or M8
Undercut Depth 0.314 in
Temp. Range (F) 0 - 248
Screw Type Low Profile Socket Head Cap
For Use With V-Guide Wheels and Bushings
Rail Finish Cold Roll
Mounting Hole from Shaft End 0.5 in
Raceway 303 Stainless Steel
Mounting Hole Center to Center 4 in
Number of Rail Holes 7
Number of Mounting Holes 7
Raceway Material 303 Stainless Steel
Rail Type Slide
Maximum Operating Temperature 248 Degrees F
Series V-Guide
Minimum Operating Temperature 0 Degrees F
Mounting Hole Center to Shaft End 2.5 in
Requires Lubrication Lubricant Not Required
Edge Angle 90 Degrees
Load Direction Axial, Radial
Channel Material Stainless Steel
System of Measurement Inch
Country of Origin United States
