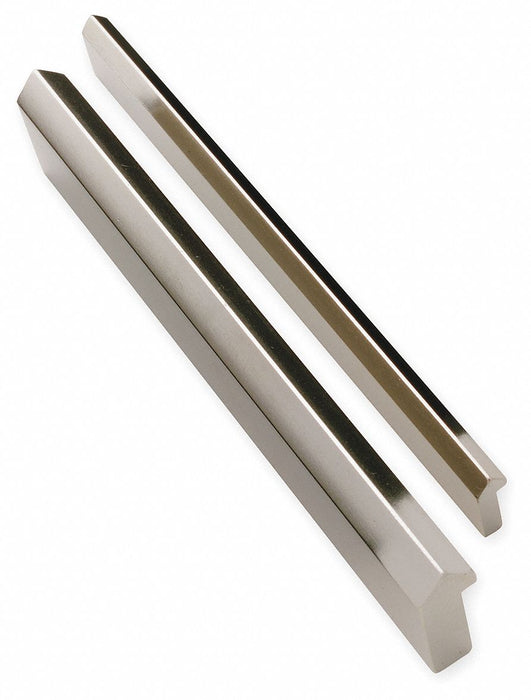

PBC Linear VRSD4-013.000 Drilled Linear Rail, V-Guide, Size 4, 13 in Length, 0.437 in Width, Stainless Steel

PBC Linear VRSD4-013.000 Drilled Linear Rail, V-Guide, Size 4, 13 in Length, 0.437 in Width, Stainless Steel

UPC: | Harmonization / Schedule B : 8482.99.0500

Country of Origin: United States | Shipping Weight: 1.37 lbs

$115.72 - $115.72
$115.72
$115.72 - $115.72
$115.72

Drilled Linear Rail, Overall Length 13 in, Overall Width 0.437 in, Overall Height 1.037 in, Rail Material Stainless Steel, Manufacturer Size 4, Number of Mounting Holes 4, Rail Finish Cold Roll, Rail Type Slide, System of Measurement Inch, For Use With V-Guide Wheels and Bushings, Operating Temperature - Maximum 180 Degrees F, Operating Temperature - Minimum 0 Degrees F, Mounting Hole Center to Center 4 in, Mounting Hole Center to Shaft End 2.5 in, Channel Material Stainless Steel

Overall Length 13 in
Overall Width 0.437 in
Overall Height 1.037 in
Mounting Hole Size 0.344 in
Thread Size 0.312 in or M8
Undercut Depth 0.314 in
Manufacturer Size 4
Type V-Guide
Rail Material Stainless Steel
Temp. Range (F) 0 - 248
Mounting Hole from Shaft End 0.5 in
For Use With V-Guide Wheels and Bushings
Number of Rail Holes 4
Rail Finish Cold Roll
Screw Type Low Profile Socket Head Cap
Temp. Range 0 - 248F
Mounting Hole Center to Center 4 in
Raceway 303 Stainless Steel
Number of Mounting Holes 4
Series V-Guide
Minimum Operating Temperature 0 Degrees F
Rail Type Slide
Maximum Operating Temperature 248 Degrees F
Raceway Material 303 Stainless Steel
Requires Lubrication Lubricant Not Required
Operating Temperature - Minimum 0 Degrees F
Channel Material Stainless Steel
Edge Angle 90 Degrees
Operating Temperature - Maximum 180 Degrees F
Load Direction Axial, Radial
Mounting Hole Center to Shaft End 2.5 in
System of Measurement Inch
Country of Origin United States
