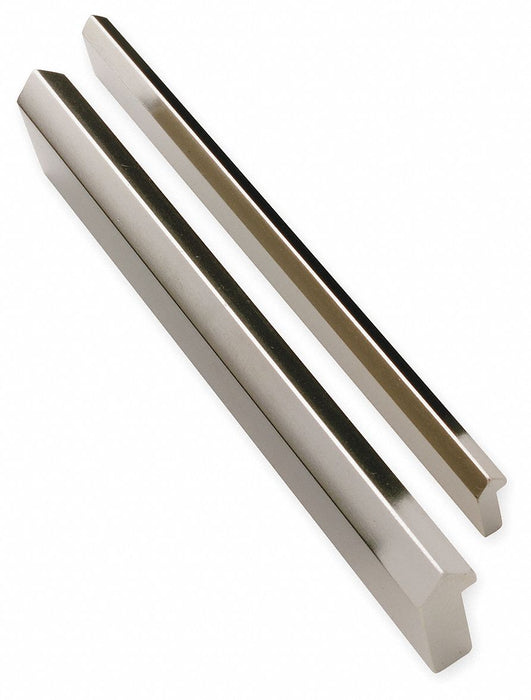

PBC Linear VRSD3-024.750 Drilled Linear Rail, V-Guide, Size 3, 24.75 in Length, 0.343 in Width, Stainless Steel

PBC Linear VRSD3-024.750 Drilled Linear Rail, V-Guide, Size 3, 24.75 in Length, 0.343 in Width, Stainless Steel

UPC: | Harmonization / Schedule B : 8482.99.0500

Country of Origin: United States | Shipping Weight: 1.74 lbs

$150.18 - $150.18
$150.18
$150.18 - $150.18
$150.18

Drilled Linear Rail, Overall Length 24.75 in, Overall Width 0.343 in, Overall Height 0.851 in, Rail Material Stainless Steel, Manufacturer Size 3, Number of Mounting Holes 9, Rail Finish Cold Roll, Rail Type Slide, System of Measurement Inch, For Use With V-Guide Wheels and Bushings, Operating Temperature - Maximum 180 Degrees F, Operating Temperature - Minimum 0 Degrees F, Mounting Hole Center to Center 3 in, Mounting Hole Center to Shaft End 1.875 in, Channel Material Stainless Steel

Overall Length 24.75 in
Overall Width 0.343 in
Overall Height 0.851 in
Mounting Hole Size 0.281 in
Thread Size 0.250 in or M6
Manufacturer Size 3
Undercut Depth 0.253 in
Type V-Guide
Rail Material Stainless Steel
Mounting Hole Center to Center 3 in
Raceway 303 Stainless Steel
Temp. Range 0 - 248F
Rail Finish Cold Roll
Screw Type Low Profile Socket Head Cap
Temp. Range (F) 0 - 248
Number of Rail Holes 9
Mounting Hole from Shaft End 0.375 in
For Use With V-Guide Wheels and Bushings
Number of Mounting Holes 9
Series V-Guide
Raceway Material 303 Stainless Steel
Minimum Operating Temperature 0 Degrees F
Rail Type Slide
Maximum Operating Temperature 248 Degrees F
Mounting Hole Center to Shaft End 1.875 in
System of Measurement Inch
Edge Angle 90 Degrees
Operating Temperature - Minimum 0 Degrees F
Load Direction Axial, Radial
Requires Lubrication Lubricant Required
Operating Temperature - Maximum 180 Degrees F
Channel Material Stainless Steel
Country of Origin United States
