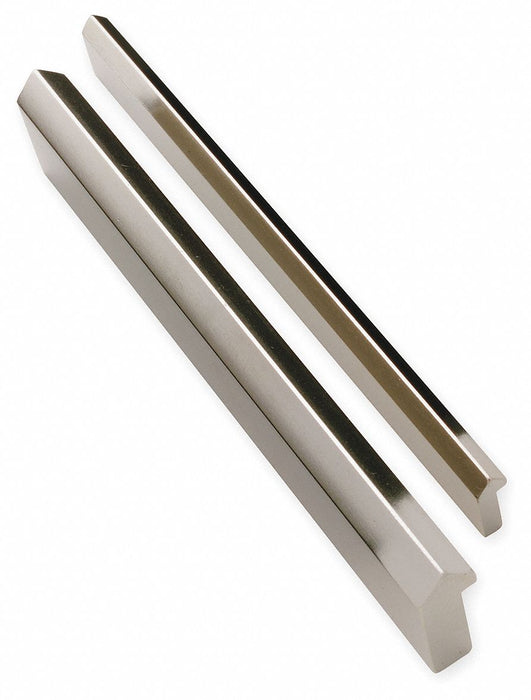

PBC Linear VRSD2-024.630 Drilled Linear Rail, V-Guide, Size 2, 24.63 in Length, 0.25 in Width, Stainless Steel

PBC Linear VRSD2-024.630 Drilled Linear Rail, V-Guide, Size 2, 24.63 in Length, 0.25 in Width, Stainless Steel

UPC: | Harmonization / Schedule B : 8482.99.0500

Country of Origin: United States | Shipping Weight: 1.0 lbs

$87.69 - $87.69
$87.69
$87.69 - $87.69
$87.69

Drilled Linear Rail, Overall Length 24.63 in, Overall Width 0.25 in, Overall Height 0.625 in, Rail Material Stainless Steel, Manufacturer Size 2, Number of Mounting Holes 9, Rail Finish Cold Roll, Rail Type Slide, System of Measurement Inch, For Use With V-Guide Wheels and Bushings, Operating Temperature - Maximum 180 Degrees F, Operating Temperature - Minimum 0 Degrees F, Mounting Hole Center to Center 3 in, Mounting Hole Center to Shaft End 1.815 in, Channel Material Stainless Steel

Overall Length 24.63 in
Overall Width 0.25 in
Overall Height 0.625 in
Mounting Hole Size 0.203 in
Thread Size #10 or M6
Manufacturer Size 2
Undercut Depth 0.19 in
Type V-Guide
Rail Material Stainless Steel
Raceway 303 Stainless Steel
Screw Type Low Profile Socket Head Cap
Number of Rail Holes 9
Mounting Hole from Shaft End 0.315 in
Rail Finish Cold Roll
Temp. Range (F) 0 - 248
For Use With V-Guide Wheels and Bushings
Mounting Hole Center to Center 3 in
Temp. Range 0 - 248F
Number of Mounting Holes 9
Series V-Guide
Maximum Operating Temperature 248 Degrees F
Raceway Material 303 Stainless Steel
Minimum Operating Temperature 0 Degrees F
Rail Type Slide
Edge Angle 90 Degrees
Operating Temperature - Minimum 0 Degrees F
Channel Material Stainless Steel
Operating Temperature - Maximum 180 Degrees F
Mounting Hole Center to Shaft End 1.815 in
Load Direction Axial, Radial
System of Measurement Inch
Requires Lubrication Lubricant Not Required
Country of Origin United States
