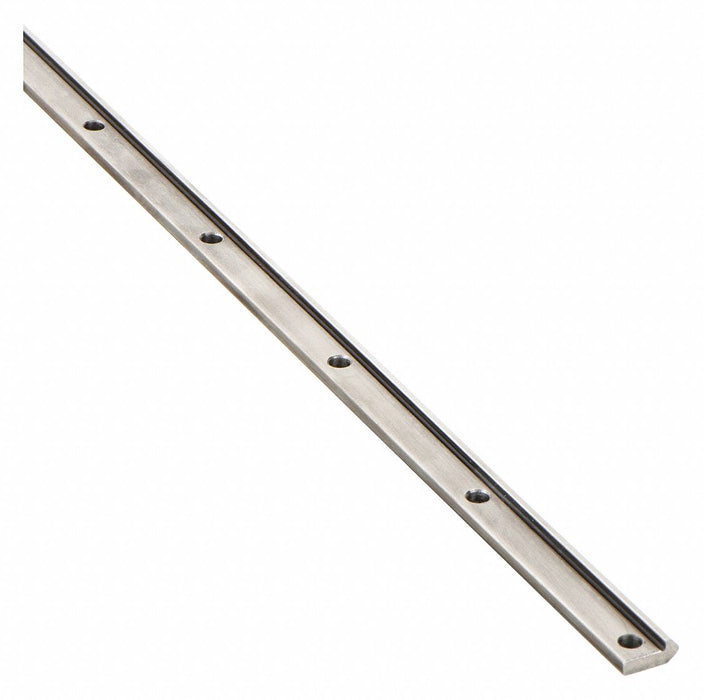

PBC Linear VRSD2-012.630 Drilled Linear Rail, V-Guide, Size 2, 12.63 in Length, 0.25 in Width, Stainless Steel

PBC Linear VRSD2-012.630 Drilled Linear Rail, V-Guide, Size 2, 12.63 in Length, 0.25 in Width, Stainless Steel

UPC: | Harmonization / Schedule B : 8482.99.0500

Country of Origin: United States | Shipping Weight: 0.34 lbs

$42.59 - $42.59
$42.59
$42.59 - $42.59
$42.59

Drilled Linear Rail, Overall Length 12.63 in, Overall Width 0.25 in, Overall Height 0.625 in, Rail Material Stainless Steel, Manufacturer Size 2, Number of Mounting Holes 5, Rail Finish Cold Roll, Rail Type Slide, System of Measurement Inch, For Use With V-Guide Wheels and Bushings, Operating Temperature - Maximum 180 Degrees F, Operating Temperature - Minimum 0 Degrees F, Mounting Hole Center to Center 3 in, Mounting Hole Center to Shaft End 1.815 in, Channel Material Stainless Steel

Overall Length 12.63 in
Overall Width 0.25 in
Overall Height 0.625 in
Mounting Hole Size 0.203 in
Thread Size #10 or M6
Undercut Depth 0.19 in
Manufacturer Size 2
Type V-Guide
Rail Material Stainless Steel
Temp. Range (F) 0 - 248
Rail Finish Cold Roll
Number of Rail Holes 5
Screw Type Low Profile Socket Head Cap
Raceway 303 Stainless Steel
Temp. Range 0 - 248F
For Use With V-Guide Wheels and Bushings
Mounting Hole from Shaft End 0.315 in
Mounting Hole Center to Center 3 in
Number of Mounting Holes 5
Series V-Guide
Minimum Operating Temperature 0 Degrees F
Rail Type Slide
Raceway Material 303 Stainless Steel
Maximum Operating Temperature 248 Degrees F
Mounting Hole Center to Shaft End 1.815 in
Channel Material Stainless Steel
Operating Temperature - Maximum 180 Degrees F
Operating Temperature - Minimum 0 Degrees F
Requires Lubrication Lubricant Not Required
Edge Angle 90 Degrees
System of Measurement Inch
Load Direction Axial, Radial
Country of Origin United States
