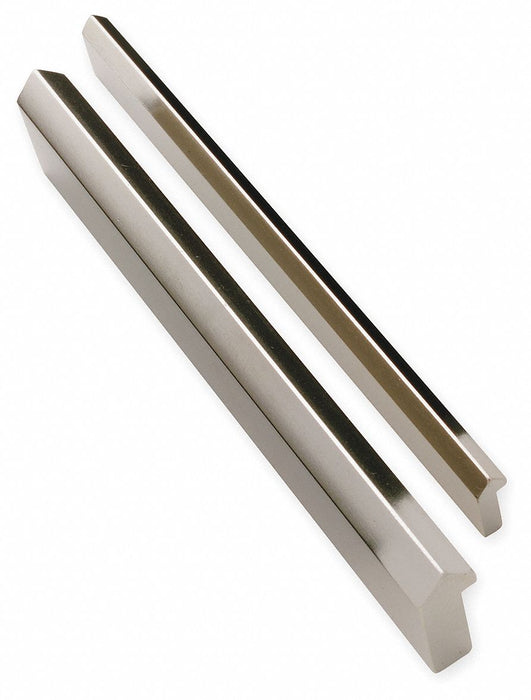

PBC Linear VRSD1-036.500 Drilled Linear Rail, V-Guide, Size 1, 36.5 in Length, 0.187 in Width, Stainless Steel

PBC Linear VRSD1-036.500 Drilled Linear Rail, V-Guide, Size 1, 36.5 in Length, 0.187 in Width, Stainless Steel

UPC: | Harmonization / Schedule B : 8482.99.0500

Country of Origin: United States | Shipping Weight: 0.8 lbs

$84.95 - $84.95
$84.95
$84.95 - $84.95
$84.95

Drilled Linear Rail, Overall Length 36.5 in, Overall Width 0.187 in, Overall Height 0.421 in, Rail Material Stainless Steel, Manufacturer Size 1, Number of Mounting Holes 19, Rail Finish Cold Roll, Rail Type Slide, System of Measurement Inch, For Use With V-Guide Wheels and Bushings, Operating Temperature - Maximum 180 Degrees F, Operating Temperature - Minimum 0 Degrees F, Mounting Hole Center to Center 2 in, Mounting Hole Center to Shaft End 1.25 in, Channel Material Stainless Steel

Type V-Guide
Rail Material Stainless Steel
Manufacturer Size 1
Overall Length 36.5 in
Overall Width 0.187 in
Overall Height 0.421 in
Thread Size #6 or M3
Mounting Hole Size 0.156 in
Undercut Depth 0.127 in
Mounting Hole from Shaft End 0.25 in
Temp. Range (F) 0 - 248
Raceway 303 Stainless Steel
Rail Finish Cold Roll
Number of Rail Holes 19
Screw Type Low Profile Socket Head Cap
For Use With V-Guide Wheels and Bushings
Number of Mounting Holes 19
Rail Type Slide
Maximum Operating Temperature 248 Degrees F
Raceway Material 303 Stainless Steel
Minimum Operating Temperature 0 Degrees F
Series V-Guide
Mounting Hole Center to Shaft End 1.25 in
Edge Angle 90 Degrees
Load Direction Axial, Radial
System of Measurement Inch
Requires Lubrication Lubricant Not Required
Channel Material Stainless Steel
Mounting Hole Center to Center 2 in
Country of Origin United States
