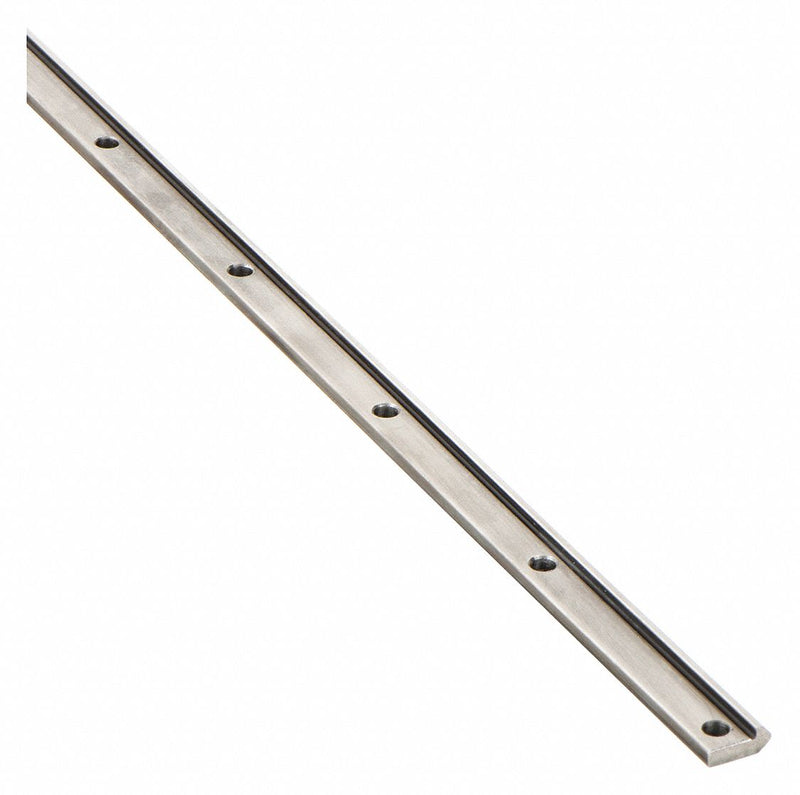

PBC Linear VRSD1-024.500 Drilled Linear Rail, V-Guide, Size 1, 24.5 in Length, 0.187 in Width, Stainless Steel

PBC Linear VRSD1-024.500 Drilled Linear Rail, V-Guide, Size 1, 24.5 in Length, 0.187 in Width, Stainless Steel

UPC: | Harmonization / Schedule B : 8482.99.0500

Country of Origin: United States | Shipping Weight: 0.6 lbs

$61.48 - $61.48
$61.48
$61.48 - $61.48
$61.48

Drilled Linear Rail, Overall Length 24.5 in, Overall Width 0.187 in, Overall Height 0.421 in, Rail Material Stainless Steel, Manufacturer Size 1, Number of Mounting Holes 13, Rail Finish Cold Roll, Rail Type Slide, System of Measurement Inch, For Use With V-Guide Wheels and Bushings, Operating Temperature - Maximum 180 Degrees F, Operating Temperature - Minimum 0 Degrees F, Mounting Hole Center to Center 2 in, Mounting Hole Center to Shaft End 1.25 in, Channel Material Stainless Steel

Overall Length 24.5 in
Overall Width 0.187 in
Overall Height 0.421 in
Thread Size #6 or M3
Mounting Hole Size 0.156 in
Undercut Depth 0.127 in
Manufacturer Size 1
Type V-Guide
Rail Material Stainless Steel
Raceway 303 Stainless Steel
Mounting Hole Center to Center 2 in
Temp. Range 0 - 248F
Mounting Hole from Shaft End 0.25 in
For Use With V-Guide Wheels and Bushings
Temp. Range (F) 0 - 248
Number of Rail Holes 13
Rail Finish Cold Roll
Screw Type Low Profile Socket Head Cap
Number of Mounting Holes 13
Maximum Operating Temperature 248 Degrees F
Rail Type Slide
Series V-Guide
Raceway Material 303 Stainless Steel
Minimum Operating Temperature 0 Degrees F
Edge Angle 90 Degrees
Operating Temperature - Maximum 180 Degrees F
System of Measurement Inch
Load Direction Axial, Radial
Requires Lubrication Lubricant Not Required
Mounting Hole Center to Shaft End 1.25 in
Operating Temperature - Minimum 0 Degrees F
Channel Material Stainless Steel
Country of Origin United States
