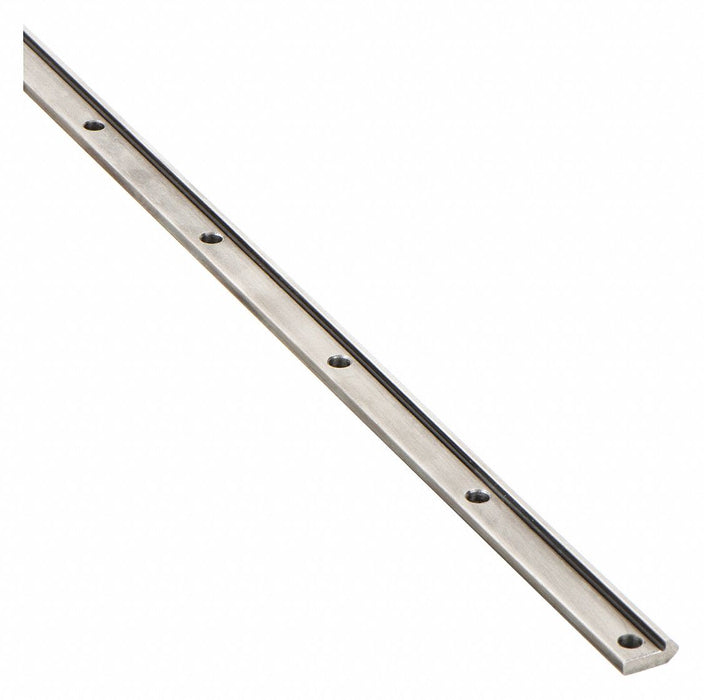

PBC Linear VRSD1-012.500 Drilled Linear Rail, V-Guide, Size 1, 12.5 in Length, 0.187 in Width, Stainless Steel

PBC Linear VRSD1-012.500 Drilled Linear Rail, V-Guide, Size 1, 12.5 in Length, 0.187 in Width, Stainless Steel

UPC: | Harmonization / Schedule B : 8482.99.0500

Country of Origin: United States | Shipping Weight: 0.3 lbs

$31.38 - $31.38
$31.38
$31.38 - $31.38
$31.38

Drilled Linear Rail, Overall Length 12.5 in, Overall Width 0.187 in, Overall Height 0.421 in, Rail Material Stainless Steel, Manufacturer Size 1, Number of Mounting Holes 7, Rail Finish Cold Roll, Rail Type Slide, System of Measurement Inch, For Use With V-Guide Wheels and Bushings, Operating Temperature - Maximum 180 Degrees F, Operating Temperature - Minimum 0 Degrees F, Mounting Hole Center to Center 2 in, Mounting Hole Center to Shaft End 1.25 in, Channel Material Stainless Steel

Overall Length 12.5 in
Overall Width 0.187 in
Overall Height 0.421 in
Thread Size #6 or M3
Mounting Hole Size 0.156 in
Manufacturer Size 1
Undercut Depth 0.127 in
Type V-Guide
Rail Material Stainless Steel
Rail Finish Cold Roll
Number of Rail Holes 7
Temp. Range 0 - 248F
For Use With V-Guide Wheels and Bushings
Screw Type Low Profile Socket Head Cap
Raceway 303 Stainless Steel
Mounting Hole from Shaft End 0.25 in
Temp. Range (F) 0 - 248
Mounting Hole Center to Center 2 in
Number of Mounting Holes 7
Minimum Operating Temperature 0 Degrees F
Series V-Guide
Raceway Material 303 Stainless Steel
Maximum Operating Temperature 248 Degrees F
Rail Type Slide
Load Direction Axial, Radial
Mounting Hole Center to Shaft End 1.25 in
Requires Lubrication Lubricant Not Required
Operating Temperature - Maximum 180 Degrees F
System of Measurement Inch
Channel Material Stainless Steel
Operating Temperature - Minimum 0 Degrees F
Edge Angle 90 Degrees
Country of Origin United States
