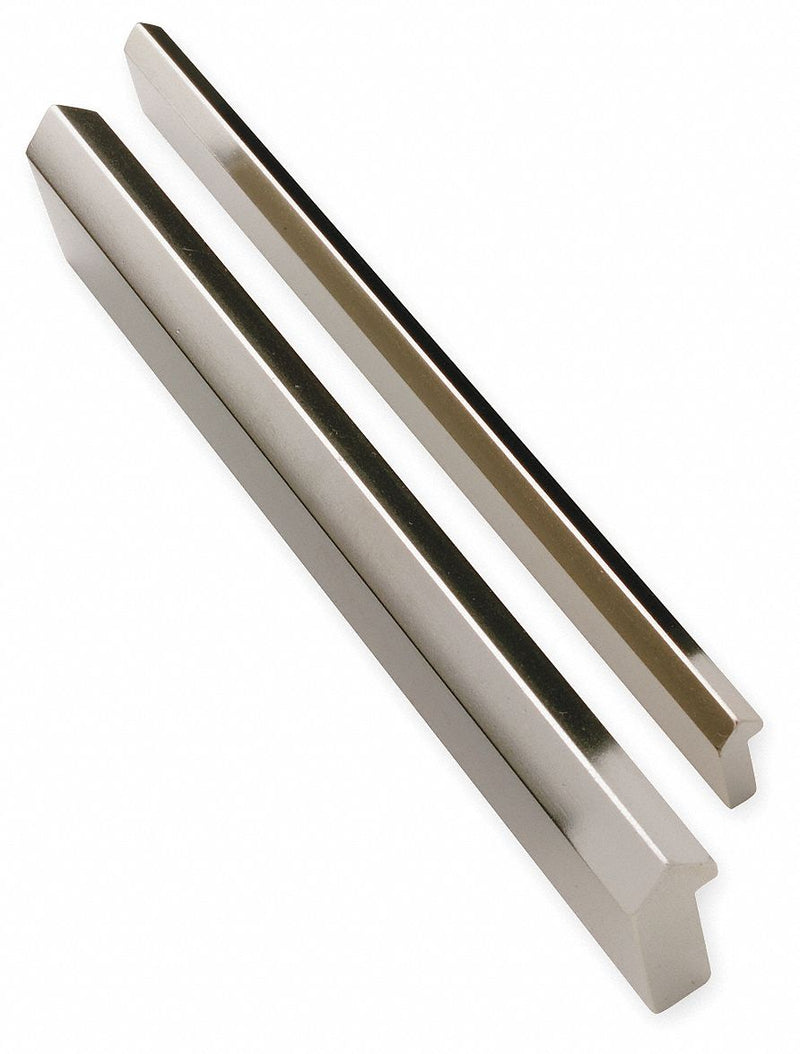

PBC Linear VRS4-037.000 Undrilled Linear Rail, V-Guide, Size 4, 37 in Length, 0.437 in Width, Stainless Steel

PBC Linear VRS4-037.000 Undrilled Linear Rail, V-Guide, Size 4, 37 in Length, 0.437 in Width, Stainless Steel

UPC: | Harmonization / Schedule B : 8482.99.0500

Country of Origin: United States | Shipping Weight: 3.325 lbs

$316.81 - $316.81
$316.81
$316.81 - $316.81
$316.81

Undrilled Linear Rail, Overall Length 37 in, Overall Width 0.437 in, Overall Height 1.037 in, Rail Material Stainless Steel, Manufacturer Size 4, Number of Mounting Holes Not Applicable, Rail Finish Cold Roll, Rail Type Slide, System of Measurement Inch, For Use With V-Guide Wheels and Bushings, Operating Temperature - Maximum 180 Degrees F, Operating Temperature - Minimum 0 Degrees F, Mounting Hole Center to Center Not Applicable, Mounting Hole Center to Shaft End Not Applicable

Overall Length 37 in
Overall Width 0.437 in
Overall Height 1.037 in
Undercut Depth 0.314 in
Manufacturer Size 4
Type V-Guide
Rail Material Stainless Steel
Raceway 303 Stainless Steel
Temp. Range (F) 0 - 248
For Use With V-Guide Wheels and Bushings
Rail Finish Cold Roll
Series V-Guide
Maximum Operating Temperature 248 Degrees F
Raceway Material 303 Stainless Steel
Rail Type Slide
Minimum Operating Temperature 0 Degrees F
Edge Angle 90 Degrees
Load Direction Axial, Radial
Requires Lubrication Lubricant Not Required
Channel Material Stainless Steel
System of Measurement Inch
Country of Origin United States
