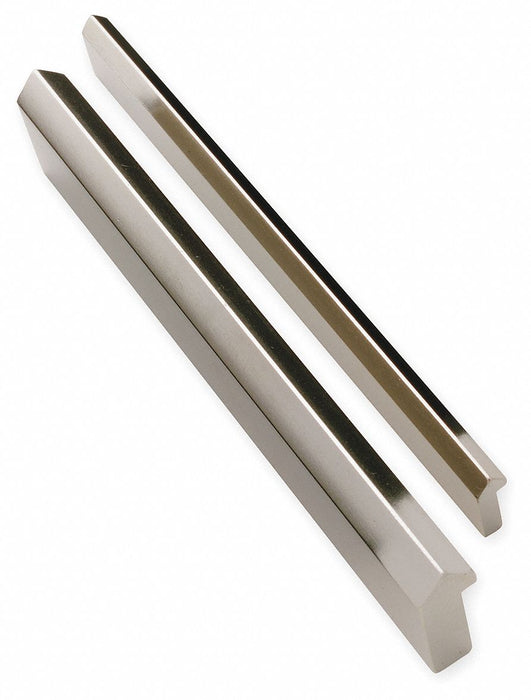

PBC Linear VRS3-048.750 Undrilled Linear Rail, V-Guide, Size 3, 48.75 in Length, 0.343 in Width, Stainless Steel

PBC Linear VRS3-048.750 Undrilled Linear Rail, V-Guide, Size 3, 48.75 in Length, 0.343 in Width, Stainless Steel

UPC: | Harmonization / Schedule B : 8482.99.0500

Country of Origin: United States | Shipping Weight: 3.46 lbs

$327.99 - $327.99
$327.99
$327.99 - $327.99
$327.99

Undrilled Linear Rail, Overall Length 48.75 in, Overall Width 0.343 in, Overall Height 0.851 in, Rail Material Stainless Steel, Manufacturer Size 3, Number of Mounting Holes Not Applicable, Rail Finish Cold Roll, Rail Type Slide, System of Measurement Inch, For Use With V-Guide Wheels and Bushings, Operating Temperature - Maximum 180 Degrees F, Operating Temperature - Minimum 0 Degrees F

Type V-Guide
Rail Material Stainless Steel
Rail Finish Cold Roll
Raceway 303 Stainless Steel
Temp. Range (F) 0 - 248
For Use With V-Guide Wheels and Bushings
Maximum Operating Temperature 248 Degrees F
Rail Type Slide
Raceway Material 303 Stainless Steel
Series V-Guide
Minimum Operating Temperature 0 Degrees F
Edge Angle 90 Degrees
Load Direction Axial, Radial
Requires Lubrication Lubricant Not Required
Channel Material Stainless Steel
System of Measurement Inch
Overall Length 48.75 in
Overall Width 0.343 in
Overall Height 0.851 in
Manufacturer Size 3
Undercut Depth 0.253 in
Country of Origin United States
