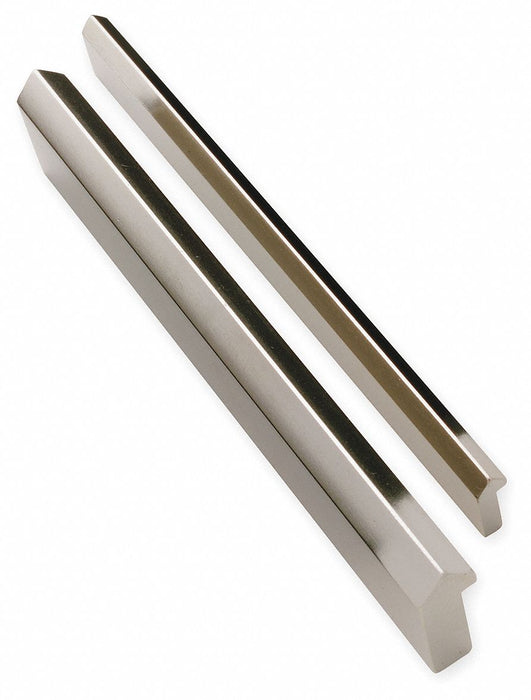

PBC Linear VRS2-036.630 Undrilled Linear Rail, V-Guide, Size 2, 36.63 in Length, 0.25 in Width, Stainless Steel

PBC Linear VRS2-036.630 Undrilled Linear Rail, V-Guide, Size 2, 36.63 in Length, 0.25 in Width, Stainless Steel

UPC: | Harmonization / Schedule B : 8482.99.0500

Country of Origin: United States | Shipping Weight: 1.4 lbs

$121.04 - $121.04
$121.04
$121.04 - $121.04
$121.04

Undrilled Linear Rail, Overall Length 36.63 in, Overall Width 0.25 in, Overall Height 0.625 in, Rail Material Stainless Steel, Manufacturer Size 2, Number of Mounting Holes Not Applicable, Rail Finish Cold Roll, Rail Type Slide, System of Measurement Inch, For Use With V-Guide Wheels and Bushings, Operating Temperature - Maximum 180 Degrees F, Operating Temperature - Minimum 0 Degrees F, Mounting Hole Center to Center Not Applicable, Mounting Hole Center to Shaft End Not Applicable

Overall Length 36.63 in
Overall Width 0.25 in
Overall Height 0.625 in
Manufacturer Size 2
Undercut Depth 0.19 in
Type V-Guide
Rail Material Stainless Steel
For Use With V-Guide Wheels and Bushings
Temp. Range (F) 0 - 248
Raceway 303 Stainless Steel
Rail Finish Cold Roll
Raceway Material 303 Stainless Steel
Maximum Operating Temperature 248 Degrees F
Series V-Guide
Minimum Operating Temperature 0 Degrees F
Rail Type Slide
Channel Material Stainless Steel
Load Direction Axial, Radial
Operating Temperature - Maximum 180 Degrees F
Requires Lubrication Lubricant Not Required
System of Measurement Inch
Operating Temperature - Minimum 0 Degrees F
Edge Angle 90 Degrees
Country of Origin United States
