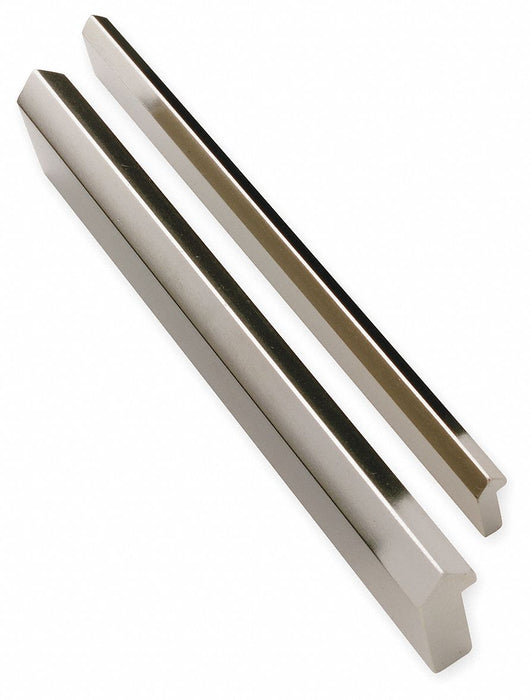

PBC Linear VRS2-012.630 Undrilled Linear Rail, V-Guide, Size 2, 12.63 in Length, 0.25 in Width, Stainless Steel

PBC Linear VRS2-012.630 Undrilled Linear Rail, V-Guide, Size 2, 12.63 in Length, 0.25 in Width, Stainless Steel

UPC: | Harmonization / Schedule B : 8482.99.0500

Country of Origin: United States | Shipping Weight: 0.5 lbs

$41.44 - $41.44
$41.44
$41.44 - $41.44
$41.44

Undrilled Linear Rail, Overall Length 12.63 in, Overall Width 0.25 in, Overall Height 0.625 in, Rail Material Stainless Steel, Manufacturer Size 2, Number of Mounting Holes Not Applicable, Rail Finish Cold Roll, Rail Type Slide, System of Measurement Inch, For Use With V-Guide Wheels and Bushings, Operating Temperature - Maximum 180 Degrees F, Operating Temperature - Minimum 0 Degrees F, Mounting Hole Center to Center Not Applicable, Mounting Hole Center to Shaft End Not Applicable

Overall Length 12.63 in
Overall Width 0.25 in
Overall Height 0.625 in
Undercut Depth 0.19 in
Manufacturer Size 2
Type V-Guide
Rail Material Stainless Steel
Temp. Range 0 - 248F
Rail Finish Cold Roll
Temp. Range (F) 0 - 248
For Use With V-Guide Wheels and Bushings
Raceway 303 Stainless Steel
Maximum Operating Temperature 248 Degrees F
Minimum Operating Temperature 0 Degrees F
Raceway Material 303 Stainless Steel
Series V-Guide
Rail Type Slide
Edge Angle 90 Degrees
Operating Temperature - Maximum 180 Degrees F
Channel Material Stainless Steel
Operating Temperature - Minimum 0 Degrees F
System of Measurement Inch
Load Direction Axial, Radial
Requires Lubrication Lubricant Not Required
Country of Origin United States
