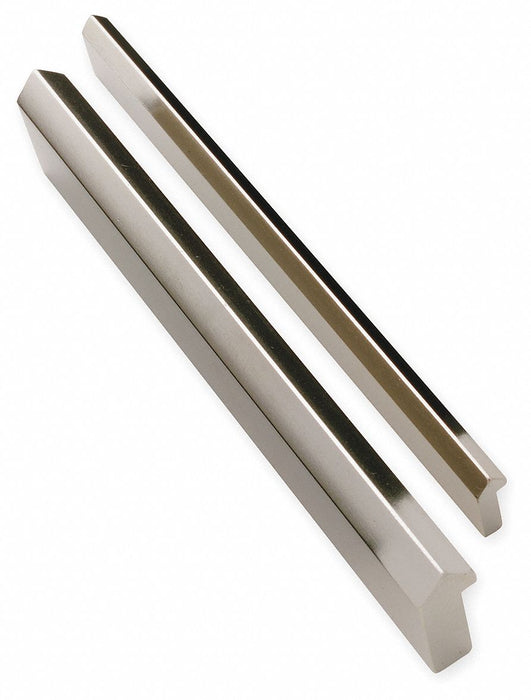

PBC Linear VRS1-048.500 Undrilled Linear Rail, V-Guide, Size 1, 48.5 in Length, 0.187 in Width, Stainless Steel

PBC Linear VRS1-048.500 Undrilled Linear Rail, V-Guide, Size 1, 48.5 in Length, 0.187 in Width, Stainless Steel

UPC: | Harmonization / Schedule B : 8482.99.0500

Country of Origin: United States | Shipping Weight: 0.74 lbs

$164.22 - $164.22
$164.22
$164.22 - $164.22
$164.22

Undrilled Linear Rail, Overall Length 48.5 in, Overall Width 0.187 in, Overall Height 0.421 in, Rail Material Stainless Steel, Manufacturer Size 1, Number of Mounting Holes Not Applicable, Rail Finish Cold Roll, Rail Type Slide, System of Measurement Inch, For Use With V-Guide Wheels and Bushings, Operating Temperature - Maximum 180 Degrees F, Operating Temperature - Minimum 0 Degrees F

Overall Length 48.5 in
Overall Width 0.187 in
Overall Height 0.421 in
Manufacturer Size 1
Undercut Depth 0.127 in
Type V-Guide
Rail Material Stainless Steel
Temp. Range (F) 0 - 248
For Use With V-Guide Wheels and Bushings
Rail Finish Cold Roll
Raceway 303 Stainless Steel
Raceway Material 303 Stainless Steel
Series V-Guide
Minimum Operating Temperature 0 Degrees F
Rail Type Slide
Maximum Operating Temperature 248 Degrees F
Channel Material Stainless Steel
Requires Lubrication Lubricant Not Required
Edge Angle 90 Degrees
Load Direction Axial, Radial
System of Measurement Inch
Country of Origin United States
