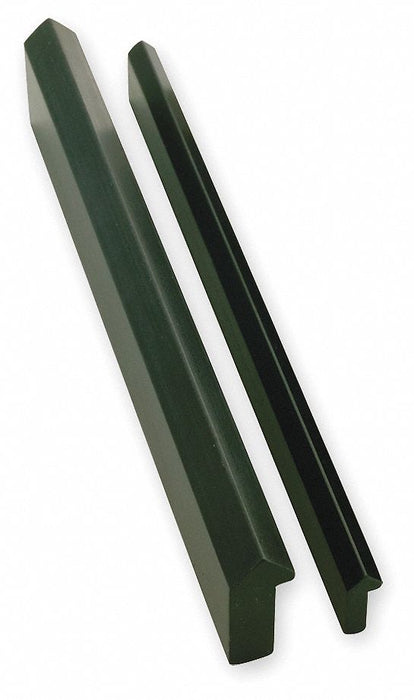

PBC Linear VRD4-049.000 Drilled Linear Rail, V-Guide, Size 4, 49 in Length, 0.437 in Width, Carbon Steel

PBC Linear VRD4-049.000 Drilled Linear Rail, V-Guide, Size 4, 49 in Length, 0.437 in Width, Carbon Steel

UPC: | Harmonization / Schedule B : 8482.99.0500

Country of Origin: United States | Shipping Weight: 5.2 lbs

$211.46 - $211.46
$211.46
$211.46 - $211.46
$211.46

Drilled Linear Rail, Overall Length 49 in, Overall Width 0.437 in, Overall Height 1.037 in, Rail Material Carbon Steel, Manufacturer Size 4, Number of Mounting Holes 13, Rail Finish Cold Roll, Rail Type Slide, System of Measurement Inch, For Use With V-Guide Wheels and Bushings, Operating Temperature - Maximum 180 Degrees F, Operating Temperature - Minimum 0 Degrees F, Mounting Hole Center to Center 4 in, Mounting Hole Center to Shaft End 2.5 in, Channel Material Steel, Series V-Guide

Type V-Guide
Overall Length 49 in
Overall Width 0.437 in
Overall Height 1.037 in
Mounting Hole Size 0.344 in
Thread Size 0.312 in or M8
Manufacturer Size 4
Undercut Depth 0.314 in
Rail Material Carbon Steel
Mounting Hole Center to Center 4 in
Screw Type Low Profile Socket Head Cap
Rail Finish Cold Roll
Mounting Hole from Shaft End 0.5 in
For Use With V-Guide Wheels and Bushings
Raceway 52100 Steel
Temp. Range (F) 0 - 248
Number of Rail Holes 13
Number of Mounting Holes 13
Rail Type Slide
Raceway Material 52100 Steel
Series V-Guide
Channel Material Steel
Edge Angle 90 Degrees
Mounting Hole Center to Shaft End 2.5 in
Load Direction Axial, Radial
System of Measurement Inch
Requires Lubrication Lubricant Not Required
Country of Origin United States
