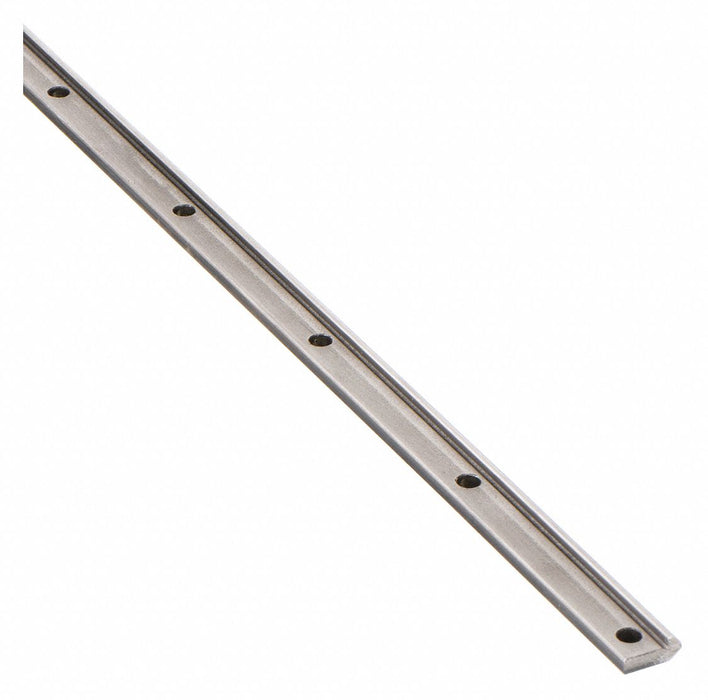

PBC Linear VRD4-037.000 Drilled Linear Rail, V-Guide, Size 4, 37 in Length, 0.437 in Width, Carbon Steel

PBC Linear VRD4-037.000 Drilled Linear Rail, V-Guide, Size 4, 37 in Length, 0.437 in Width, Carbon Steel

UPC: | Harmonization / Schedule B : 8482.99.0500

Country of Origin: United States | Shipping Weight: 4.0 lbs

$131.10 - $131.10
$131.10
$131.10 - $131.10
$131.10

Drilled Linear Rail, Overall Length 37 in, Overall Width 0.437 in, Overall Height 1.037 in, Rail Material Carbon Steel, Manufacturer Size 4, Number of Mounting Holes 10, Rail Finish Cold Roll, Rail Type Slide, System of Measurement Inch, For Use With V-Guide Wheels and Bushings, Operating Temperature - Maximum 180 Degrees F, Operating Temperature - Minimum 0 Degrees F, Mounting Hole Center to Center 4 in, Mounting Hole Center to Shaft End 2.5 in, Channel Material Steel, Series V-Guide

Type V-Guide
Rail Material Carbon Steel
Manufacturer Size 4
Overall Length 37 in
Overall Width 0.437 in
Overall Height 1.037 in
Thread Size 0.312 in or M8
Mounting Hole Size 0.344 in
Undercut Depth 0.314 in
Number of Rail Holes 10
Mounting Hole Center to Center 4 in
Rail Finish Cold Roll
Temp. Range (F) 0 - 248
For Use With V-Guide Wheels and Bushings
Screw Type Low Profile Socket Head Cap
Raceway 52100 Steel
Mounting Hole from Shaft End 0.5 in
Number of Mounting Holes 10
Maximum Operating Temperature 248 Degrees F
Rail Type Slide
Series V-Guide
Raceway Material 52100 Steel
Minimum Operating Temperature 0 Degrees F
Mounting Hole Center to Shaft End 2.5 in
Requires Lubrication Lubricant Not Required
Load Direction Axial, Radial
System of Measurement Inch
Channel Material Steel
Edge Angle 90 Degrees
Country of Origin United States
