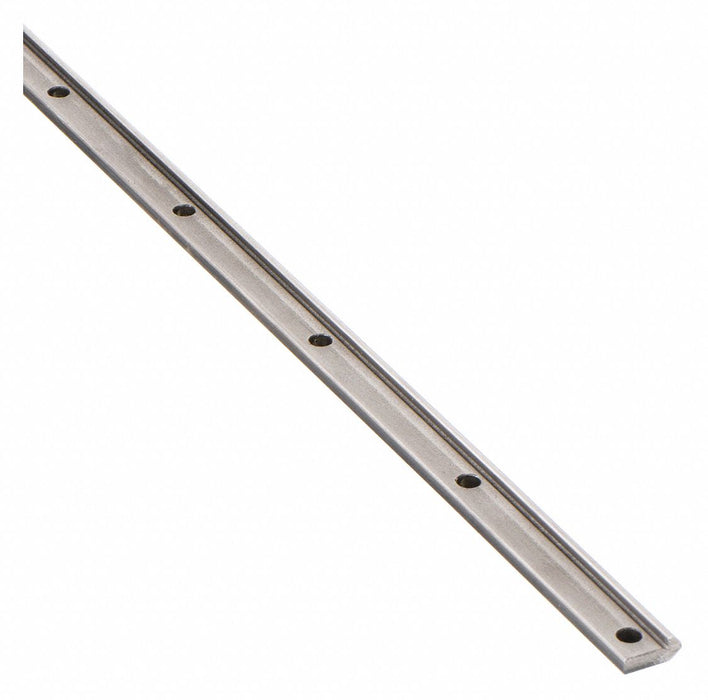

PBC Linear VRD4-025.000 Drilled Linear Rail, V-Guide, Size 4, 25 in Length, 0.437 in Width, Carbon Steel

PBC Linear VRD4-025.000 Drilled Linear Rail, V-Guide, Size 4, 25 in Length, 0.437 in Width, Carbon Steel

UPC: | Harmonization / Schedule B : 8482.99.0500

Country of Origin: United States | Shipping Weight: 2.7 lbs

$84.12 - $84.12
$84.12
$84.12 - $84.12
$84.12

Drilled Linear Rail, Overall Length 25 in, Overall Width 0.437 in, Overall Height 1.037 in, Rail Material Carbon Steel, Manufacturer Size 4, Number of Mounting Holes 7, Rail Finish Cold Roll, Rail Type Slide, System of Measurement Inch, For Use With V-Guide Wheels and Bushings, Operating Temperature - Maximum 180 Degrees F, Operating Temperature - Minimum 0 Degrees F, Mounting Hole Center to Center 4 in, Mounting Hole Center to Shaft End 2.5 in, Channel Material Steel, Series V-Guide

Type V-Guide
Rail Material Carbon Steel
Manufacturer Size 4
Overall Length 25 in
Overall Width 0.437 in
Overall Height 1.037 in
Mounting Hole Size 0.344 in
Thread Size 0.312 in or M8
Undercut Depth 0.314 in
Rail Finish Cold Roll
Temp. Range (F) 0 - 248
Mounting Hole Center to Center 4 in
Number of Rail Holes 7
Mounting Hole from Shaft End 0.5 in
Screw Type Low Profile Socket Head Cap
Raceway 52100 Steel
Series V-Guide
Minimum Operating Temperature 0 Degrees F
Maximum Operating Temperature 248 Degrees F
Raceway Material 52100 Steel
Rail Type Slide
Load Direction Axial, Radial
Edge Angle 90 Degrees
Channel Material Steel
Requires Lubrication Lubricant Not Required
System of Measurement Inch
Country of Origin United States
