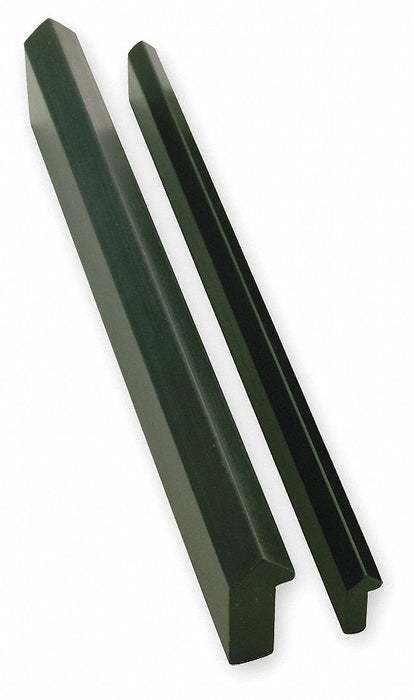

PBC Linear VRD4-013.000 Drilled Linear Rail, V-Guide, Size 4, 13 in Length, 0.437 in Width, Carbon Steel

PBC Linear VRD4-013.000 Drilled Linear Rail, V-Guide, Size 4, 13 in Length, 0.437 in Width, Carbon Steel

UPC: | Harmonization / Schedule B : 8482.99.0500

Country of Origin: United States | Shipping Weight: 1.41 lbs

$43.50 - $43.50
$43.50
$43.50 - $43.50
$43.50

Drilled Linear Rail, Overall Length 13 in, Overall Width 0.437 in, Overall Height 1.037 in, Rail Material Carbon Steel, Manufacturer Size 4, Number of Mounting Holes 4, Rail Finish Cold Roll, Rail Type Slide, System of Measurement Inch, For Use With V-Guide Wheels and Bushings, Operating Temperature - Maximum 180 Degrees F, Operating Temperature - Minimum 0 Degrees F, Mounting Hole Center to Center 4 in, Mounting Hole Center to Shaft End 2.5 in, Channel Material Steel, Series V-Guide

Overall Length 13 in
Overall Width 0.437 in
Overall Height 1.037 in
Mounting Hole Size 0.344 in
Thread Size 0.312 in or M8
Manufacturer Size 4
Undercut Depth 0.314 in
Type V-Guide
Rail Material Carbon Steel
For Use With V-Guide Wheels and Bushings
Screw Type Low Profile Socket Head Cap
Mounting Hole from Shaft End 0.5 in
Mounting Hole Center to Center 4 in
Number of Rail Holes 4
Raceway 52100 Steel
Temp. Range 0 - 248F
Temp. Range (F) 0 - 248
Rail Finish Cold Roll
Number of Mounting Holes 4
Raceway Material 52100 Steel
Maximum Operating Temperature 248 Degrees F
Rail Type Slide
Series V-Guide
Minimum Operating Temperature 0 Degrees F
Operating Temperature - Maximum 180 Degrees F
Load Direction Axial, Radial
Edge Angle 90 Degrees
Operating Temperature - Minimum 0 Degrees F
Mounting Hole Center to Shaft End 2.5 in
Channel Material Steel
System of Measurement Inch
Requires Lubrication Lubricant Not Required
Country of Origin United States
