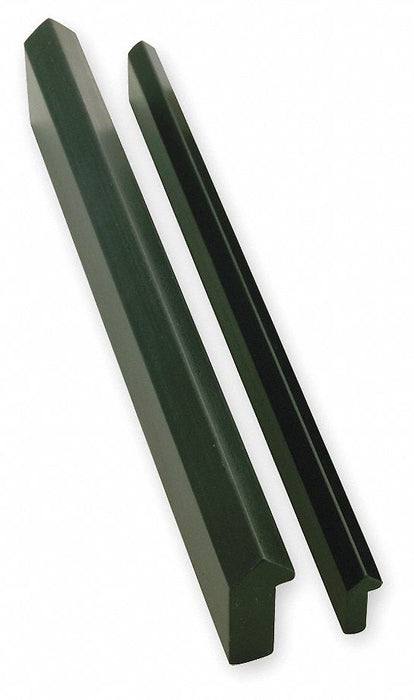

PBC Linear VRD3-048.750 Drilled Linear Rail, V-Guide, Size 3, 48.75 in Length, 0.343 in Width, Steel

PBC Linear VRD3-048.750 Drilled Linear Rail, V-Guide, Size 3, 48.75 in Length, 0.343 in Width, Steel

UPC: | Harmonization / Schedule B : 8482.99.0500

Country of Origin: United States | Shipping Weight: 2.9 lbs

$185.49 - $185.49
$185.49
$185.49 - $185.49
$185.49

Drilled Linear Rail, Overall Length 48.75 in, Overall Width 0.343 in, Overall Height 0.851 in, Rail Material Steel, Manufacturer Size 3, Number of Mounting Holes 17, Rail Finish Cold Roll, Rail Type Slide, System of Measurement Inch, For Use With V-Guide Wheels and Bushings, Operating Temperature - Maximum 180 Degrees F, Operating Temperature - Minimum 0 Degrees F, Mounting Hole Center to Center 3 in, Mounting Hole Center to Shaft End 1.875 in, Channel Material Steel, Series V-Guide

Overall Length 48.75 in
Overall Width 0.343 in
Overall Height 0.851 in
Mounting Hole Size 0.281 in
Thread Size 0.250 in or M6
Undercut Depth 0.253 in
Manufacturer Size 3
Type V-Guide
Rail Material Steel
Screw Type Low Profile Socket Head Cap
Raceway 52100 Steel
Mounting Hole from Shaft End 0.75 in
Mounting Hole Center to Center 3 in
Rail Finish Cold Roll
For Use With V-Guide Wheels and Bushings
Temp. Range (F) 0 - 248
Number of Rail Holes 17
Number of Mounting Holes 17
Rail Type Slide
Series V-Guide
Raceway Material 52100 Steel
System of Measurement Inch
Mounting Hole Center to Shaft End 1.875 in
Edge Angle 90 Degrees
Requires Lubrication Lubricant Not Required
Channel Material Steel
Load Direction Axial, Radial
Country of Origin United States
