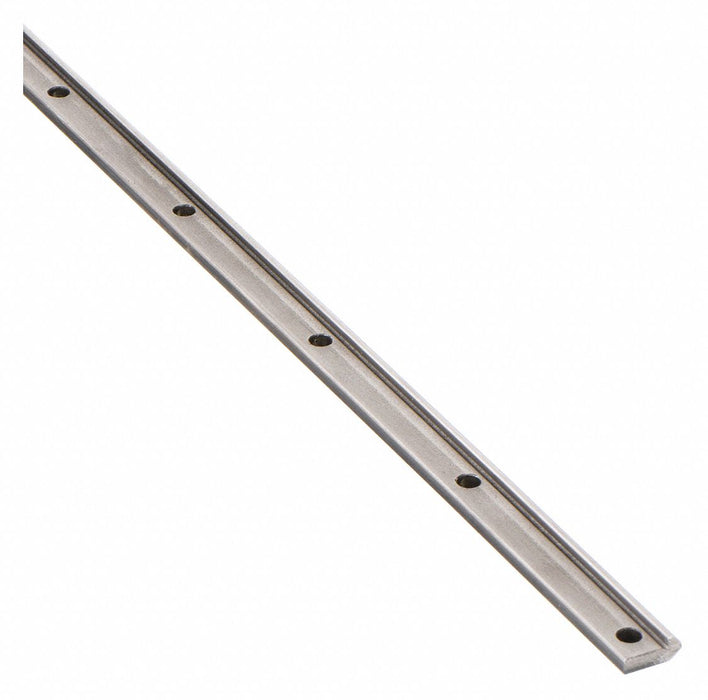

PBC Linear VRD3-036.750 Drilled Linear Rail, V-Guide, Size 3, 36.75 in Length, 0.343 in Width, Carbon Steel

PBC Linear VRD3-036.750 Drilled Linear Rail, V-Guide, Size 3, 36.75 in Length, 0.343 in Width, Carbon Steel

UPC: | Harmonization / Schedule B : 8482.99.0500

Country of Origin: United States | Shipping Weight: 2.18 lbs

$104.11 - $104.11
$104.11
$104.11 - $104.11
$104.11

Drilled Linear Rail, Overall Length 36.75 in, Overall Width 0.343 in, Overall Height 0.851 in, Rail Material Carbon Steel, Manufacturer Size 3, Number of Mounting Holes 13, Rail Finish Cold Roll, Rail Type Slide, System of Measurement Inch, For Use With V-Guide Wheels and Bushings, Operating Temperature - Maximum 180 Degrees F, Operating Temperature - Minimum 0 Degrees F, Mounting Hole Center to Center 3 in, Mounting Hole Center to Shaft End 1.875 in, Channel Material Steel, Series V-Guide

Overall Length 36.75 in
Overall Width 0.343 in
Overall Height 0.851 in
Mounting Hole Size 0.281 in
Thread Size 0.250 in or M6
Undercut Depth 0.253 in
Manufacturer Size 3
Type V-Guide
Rail Material Carbon Steel
Screw Type Low Profile Socket Head Cap
Mounting Hole from Shaft End 0.375 in
Raceway 52100 Steel
For Use With V-Guide Wheels and Bushings
Rail Finish Cold Roll
Number of Rail Holes 13
Temp. Range 0 - 248F
Mounting Hole Center to Center 3 in
Number of Mounting Holes 13
Series V-Guide
Rail Type Slide
Maximum Operating Temperature 248 Degrees F
Minimum Operating Temperature 0 Degrees F
Raceway Material 52100 Steel
Mounting Hole Center to Shaft End 1.875 in
Operating Temperature - Maximum 180 Degrees F
Channel Material Steel
Operating Temperature - Minimum 0 Degrees F
Load Direction Axial, Radial
System of Measurement Inch
Edge Angle 90 Degrees
Requires Lubrication Lubricant Not Required
Country of Origin United States
