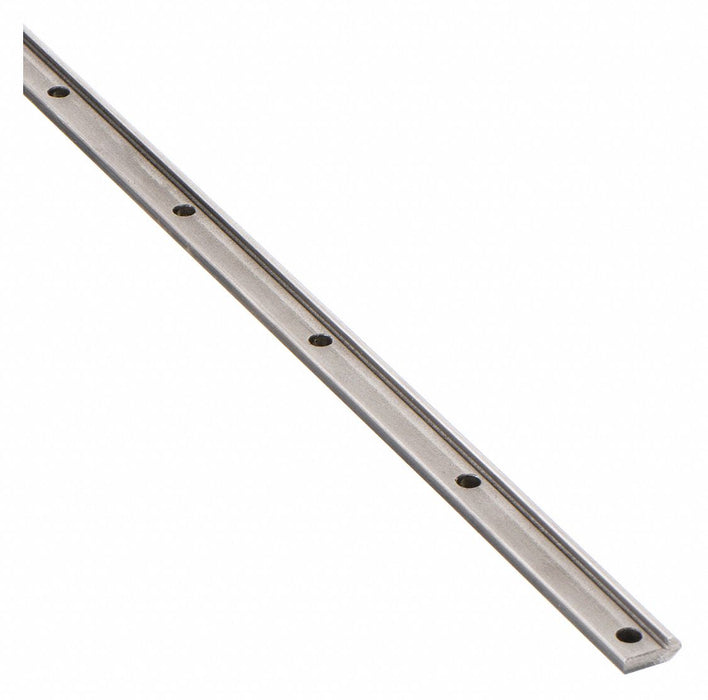

PBC Linear VRD3-024.750 Drilled Linear Rail, V-Guide, Size 3, 24.75 in Length, 0.343 in Width, Steel

PBC Linear VRD3-024.750 Drilled Linear Rail, V-Guide, Size 3, 24.75 in Length, 0.343 in Width, Steel

UPC: | Harmonization / Schedule B : 8482.99.0500

Country of Origin: United States | Shipping Weight: 1.37 lbs

$64.83 - $64.83
$64.83
$64.83 - $64.83
$64.83

Drilled Linear Rail, Overall Length 24.75 in, Overall Width 0.343 in, Overall Height 0.851 in, Rail Material Steel, Manufacturer Size 3, Number of Mounting Holes 9, Rail Finish Cold Roll, Rail Type Slide, System of Measurement Inch, For Use With V-Guide Wheels and Bushings, Operating Temperature - Maximum 180 Degrees F, Operating Temperature - Minimum 0 Degrees F, Mounting Hole Center to Center 3 in, Mounting Hole Center to Shaft End 1.875 in, Channel Material Steel, Series V-Guide

Overall Length 24.75 in
Overall Width 0.343 in
Overall Height 0.851 in
Mounting Hole Size 0.281 in
Thread Size 0.250 in or M6
Manufacturer Size 3
Undercut Depth 0.253 in
Type V-Guide
Rail Material Steel
Rail Finish Cold Roll
Temp. Range 0 - 248F
Number of Rail Holes 9
For Use With V-Guide Wheels and Bushings
Raceway 52100 Steel
Mounting Hole from Shaft End 0.375 in
Screw Type Low Profile Socket Head Cap
Mounting Hole Center to Center 3 in
Temp. Range (F) 0 - 248
Number of Mounting Holes 9
Rail Type Slide
Minimum Operating Temperature 0 Degrees F
Maximum Operating Temperature 248 Degrees F
Series V-Guide
Raceway Material 52100 Steel
Operating Temperature - Maximum 180 Degrees F
Load Direction Axial, Radial
Mounting Hole Center to Shaft End 1.875 in
System of Measurement Inch
Edge Angle 90 Degrees
Requires Lubrication Lubricant Not Required
Operating Temperature - Minimum 0 Degrees F
Channel Material Steel
Country of Origin United States
