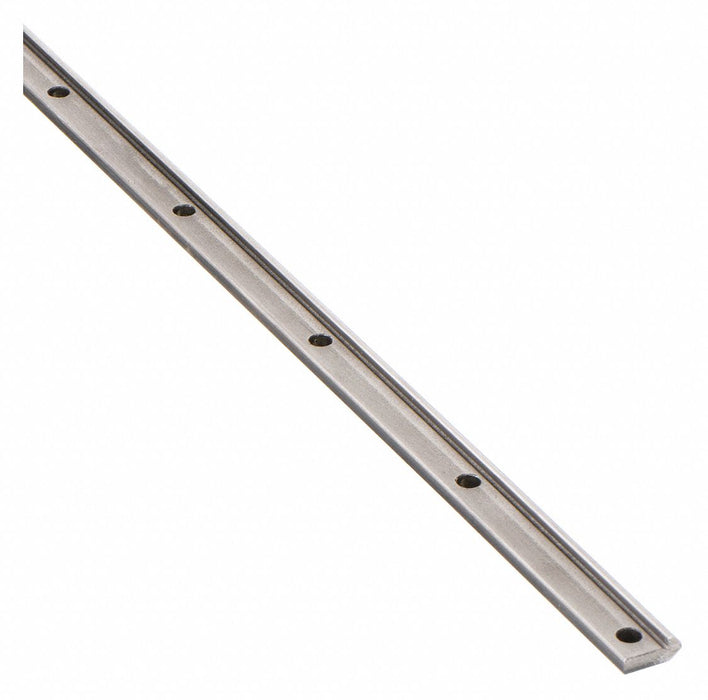

PBC Linear VRD3-012.750 Drilled Linear Rail, V-Guide, Size 3, 12.75 in Length, 0.343 in Width, Carbon Steel

PBC Linear VRD3-012.750 Drilled Linear Rail, V-Guide, Size 3, 12.75 in Length, 0.343 in Width, Carbon Steel

UPC: | Harmonization / Schedule B : 8482.99.0500

Country of Origin: United States | Shipping Weight: 0.9 lbs

$33.23 - $33.23
$33.23
$33.23 - $33.23
$33.23

Drilled Linear Rail, Overall Length 12.75 in, Overall Width 0.343 in, Overall Height 0.851 in, Rail Material Carbon Steel, Manufacturer Size 3, Number of Mounting Holes 5, Rail Finish Cold Roll, Rail Type Slide, System of Measurement Inch, For Use With V-Guide Wheels and Bushings, Operating Temperature - Maximum 180 Degrees F, Operating Temperature - Minimum 0 Degrees F, Mounting Hole Center to Center 3 in, Mounting Hole Center to Shaft End 1.875 in, Channel Material Steel, Series V-Guide

Overall Length 12.75 in
Overall Width 0.343 in
Overall Height 0.851 in
Mounting Hole Size 0.281 in
Thread Size 0.250 in or M6
Manufacturer Size 3
Undercut Depth 0.253 in
Type V-Guide
Rail Material Carbon Steel
Temp. Range 0 - 248F
Screw Type Low Profile Socket Head Cap
Mounting Hole Center to Center 3 in
For Use With V-Guide Wheels and Bushings
Raceway 52100 Steel
Rail Finish Cold Roll
Mounting Hole from Shaft End 0.375 in
Temp. Range (F) 0 - 248
Number of Rail Holes 5
Number of Mounting Holes 5
Minimum Operating Temperature 0 Degrees F
Raceway Material 52100 Steel
Rail Type Slide
Maximum Operating Temperature 248 Degrees F
Series V-Guide
Operating Temperature - Maximum 180 Degrees F
Channel Material Steel
Load Direction Axial, Radial
Edge Angle 90 Degrees
System of Measurement Inch
Mounting Hole Center to Shaft End 1.875 in
Operating Temperature - Minimum 0 Degrees F
Requires Lubrication Lubricant Not Required
Country of Origin United States
