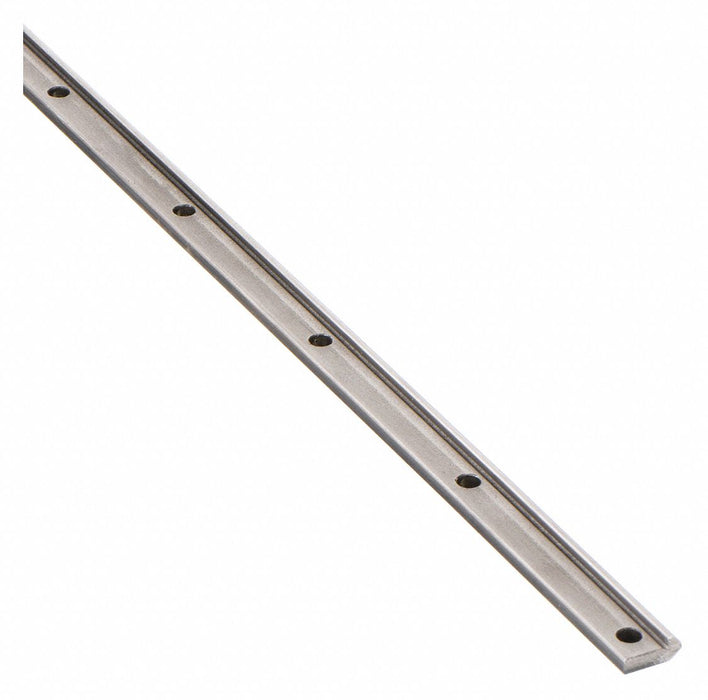

PBC Linear VRD2-048.630 Drilled Linear Rail, V-Guide, Size 2, 48.63 in Length, 0.25 in Width, Steel

PBC Linear VRD2-048.630 Drilled Linear Rail, V-Guide, Size 2, 48.63 in Length, 0.25 in Width, Steel

UPC: | Harmonization / Schedule B : 8482.99.0500

Country of Origin: United States | Shipping Weight: 1.81 lbs

$124.28 - $124.28
$124.28
$124.28 - $124.28
$124.28

Drilled Linear Rail, Overall Length 48.63 in, Overall Width 0.25 in, Overall Height 0.625 in, Rail Material Steel, Manufacturer Size 2, Number of Mounting Holes 17, Rail Finish Cold Roll, Rail Type Slide, System of Measurement Inch, For Use With V-Guide Wheels and Bushings, Operating Temperature - Maximum 180 Degrees F, Operating Temperature - Minimum 0 Degrees F, Mounting Hole Center to Center 3 in, Mounting Hole Center to Shaft End 1.815 in, Channel Material Steel, Series V-Guide

Type V-Guide
Rail Material Steel
Rail Finish Cold Roll
Temp. Range (F) 0 - 248
Screw Type Low Profile Socket Head Cap
Number of Rail Holes 17
For Use With V-Guide Wheels and Bushings
Raceway 52100 Steel
Manufacturer Size 2
Undercut Depth 0.19 in
Mounting Hole Size 0.203 in
Thread Size #10 or M6
Overall Length 48.63 in
Overall Width 0.25 in
Overall Height 0.625 in
Mounting Hole from Shaft End 0.315 in
Mounting Hole Center to Center 3 in
Number of Mounting Holes 17
Series V-Guide
Rail Type Slide
Raceway Material 52100 Steel
Requires Lubrication Lubricant Not Required
Mounting Hole Center to Shaft End 1.815 in
Channel Material Steel
Load Direction Axial, Radial
Edge Angle 90 Degrees
System of Measurement Inch
Country of Origin United States
