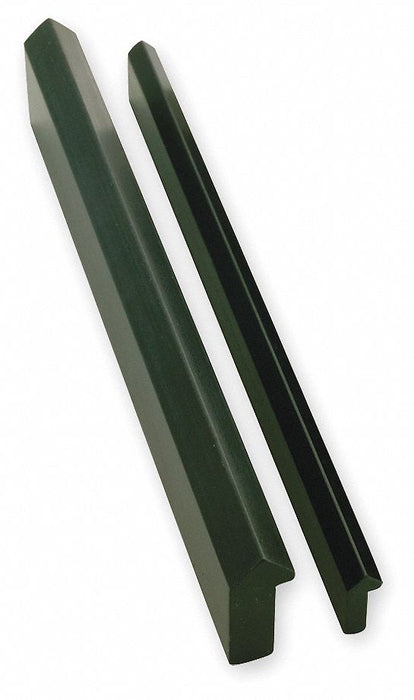

PBC Linear VRD2-036.630 Drilled Linear Rail, V-Guide, Size 2, 36.63 in Length, 0.25 in Width, Carbon Steel

PBC Linear VRD2-036.630 Drilled Linear Rail, V-Guide, Size 2, 36.63 in Length, 0.25 in Width, Carbon Steel

UPC: | Harmonization / Schedule B : 8482.99.0500

Country of Origin: United States | Shipping Weight: 1.61 lbs

$57.56 - $57.56
$57.56
$57.56 - $57.56
$57.56

Drilled Linear Rail, Overall Length 36.63 in, Overall Width 0.25 in, Overall Height 0.625 in, Rail Material Carbon Steel, Manufacturer Size 2, Number of Mounting Holes 13, Rail Finish Cold Roll, Rail Type Slide, System of Measurement Inch, For Use With V-Guide Wheels and Bushings, Operating Temperature - Maximum 180 Degrees F, Operating Temperature - Minimum 0 Degrees F, Mounting Hole Center to Center 3 in, Mounting Hole Center to Shaft End 1.815 in, Channel Material Steel, Series V-Guide

Overall Length 36.63 in
Overall Width 0.25 in
Overall Height 0.625 in
Thread Size #10 or M6
Mounting Hole Size 0.203 in
Manufacturer Size 2
Undercut Depth 0.19 in
Type V-Guide
Rail Material Carbon Steel
Screw Type Low Profile Socket Head Cap
Mounting Hole from Shaft End 0.315 in
Mounting Hole Center to Center 3 in
Temp. Range 0 - 248F
Number of Rail Holes 13
Rail Finish Cold Roll
Raceway 52100 Steel
For Use With V-Guide Wheels and Bushings
Number of Mounting Holes 13
Series V-Guide
Rail Type Slide
Minimum Operating Temperature 0 Degrees F
Raceway Material 52100 Steel
Maximum Operating Temperature 248 Degrees F
Operating Temperature - Minimum 0 Degrees F
Load Direction Axial, Radial
Requires Lubrication Lubricant Not Required
System of Measurement Inch
Operating Temperature - Maximum 180 Degrees F
Mounting Hole Center to Shaft End 1.815 in
Edge Angle 90 Degrees
Channel Material Steel
Country of Origin United States
