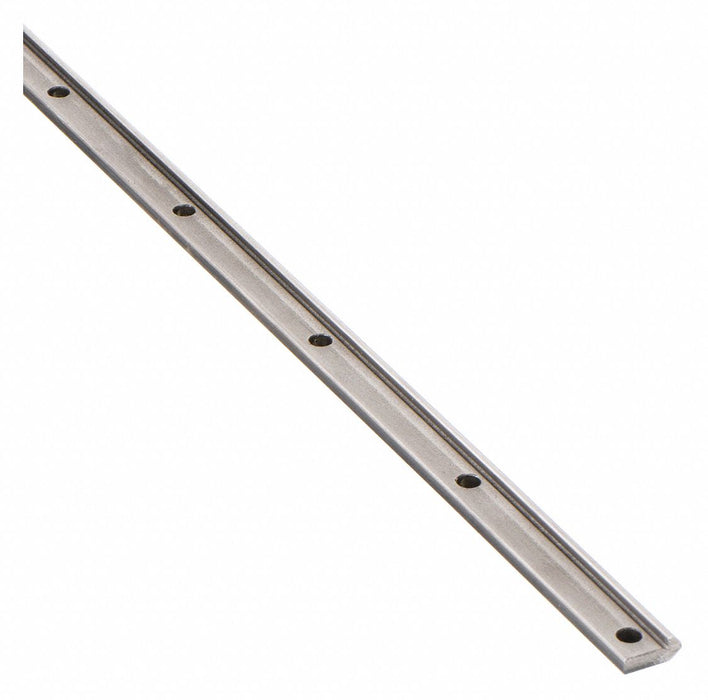

PBC Linear VRD2-024.630 Drilled Linear Rail, V-Guide, Size 2, 24.63 in Length, 0.25 in Width, Steel

PBC Linear VRD2-024.630 Drilled Linear Rail, V-Guide, Size 2, 24.63 in Length, 0.25 in Width, Steel

UPC: | Harmonization / Schedule B : 8482.99.0500

Country of Origin: United States | Shipping Weight: 0.96 lbs

$41.75 - $41.75
$41.75
$41.75 - $41.75
$41.75

Drilled Linear Rail, Overall Length 24.63 in, Overall Width 0.25 in, Overall Height 0.625 in, Rail Material Steel, Manufacturer Size 2, Number of Mounting Holes 9, Rail Finish Cold Roll, Rail Type Slide, System of Measurement Inch, For Use With V-Guide Wheels and Bushings, Operating Temperature - Maximum 180 Degrees F, Operating Temperature - Minimum 0 Degrees F, Mounting Hole Center to Center 3 in, Mounting Hole Center to Shaft End 1.815 in, Channel Material Steel, Series V-Guide

Overall Length 24.63 in
Overall Width 0.25 in
Overall Height 0.625 in
Thread Size #10 or M6
Mounting Hole Size 0.203 in
Undercut Depth 0.19 in
Manufacturer Size 2
Type V-Guide
Rail Material Steel
Temp. Range 0 - 248F
Screw Type Low Profile Socket Head Cap
Number of Rail Holes 9
For Use With V-Guide Wheels and Bushings
Mounting Hole from Shaft End 0.315 in
Rail Finish Cold Roll
Temp. Range (F) 0 - 248
Raceway 52100 Steel
Mounting Hole Center to Center 3 in
Number of Mounting Holes 9
Series V-Guide
Maximum Operating Temperature 248 Degrees F
Raceway Material 52100 Steel
Rail Type Slide
Minimum Operating Temperature 0 Degrees F
System of Measurement Inch
Load Direction Axial, Radial
Operating Temperature - Minimum 0 Degrees F
Requires Lubrication Lubricant Not Required
Mounting Hole Center to Shaft End 1.815 in
Edge Angle 90 Degrees
Channel Material Steel
Operating Temperature - Maximum 180 Degrees F
Country of Origin United States
