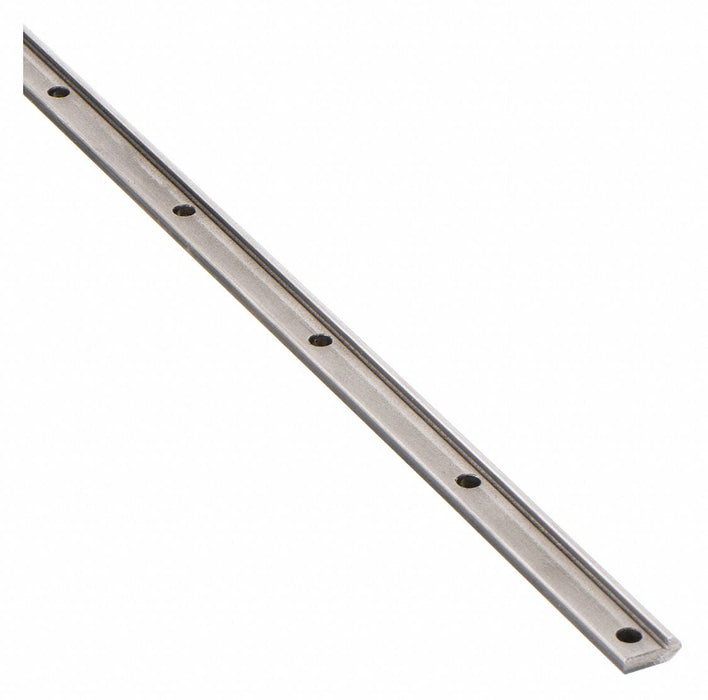

PBC Linear VRD2-012.630 Drilled Linear Rail, V-Guide, Size 2, 12.63 in Length, 0.25 in Width, Carbon Steel

PBC Linear VRD2-012.630 Drilled Linear Rail, V-Guide, Size 2, 12.63 in Length, 0.25 in Width, Carbon Steel

UPC: | Harmonization / Schedule B : 8482.99.0500

Country of Origin: United States | Shipping Weight: 0.45 lbs

$20.73 - $20.73
$20.73
$20.73 - $20.73
$20.73

Drilled Linear Rail, Overall Length 12.63 in, Overall Width 0.25 in, Overall Height 0.625 in, Rail Material Carbon Steel, Manufacturer Size 2, Number of Mounting Holes 5, Rail Finish Cold Roll, Rail Type Slide, System of Measurement Inch, For Use With V-Guide Wheels and Bushings, Operating Temperature - Maximum 180 Degrees F, Operating Temperature - Minimum 0 Degrees F, Mounting Hole Center to Center 3 in, Mounting Hole Center to Shaft End 1.815 in, Channel Material Steel, Series V-Guide

Overall Length 12.63 in
Overall Width 0.25 in
Overall Height 0.625 in
Thread Size #10 or M6
Mounting Hole Size 0.203 in
Undercut Depth 0.19 in
Manufacturer Size 2
Type V-Guide
Rail Material Carbon Steel
Raceway 52100 Steel
Temp. Range (F) 0 - 248
Screw Type Low Profile Socket Head Cap
Mounting Hole from Shaft End 0.315 in
Number of Rail Holes 5
Mounting Hole Center to Center 3 in
Rail Finish Cold Roll
Temp. Range 0 - 248F
For Use With V-Guide Wheels and Bushings
Number of Mounting Holes 5
Series V-Guide
Rail Type Slide
Raceway Material 52100 Steel
Minimum Operating Temperature 0 Degrees F
Maximum Operating Temperature 248 Degrees F
Load Direction Axial, Radial
Operating Temperature - Minimum 0 Degrees F
Mounting Hole Center to Shaft End 1.815 in
Requires Lubrication Lubricant Not Required
Edge Angle 90 Degrees
Channel Material Steel
System of Measurement Inch
Operating Temperature - Maximum 180 Degrees F
Country of Origin United States
