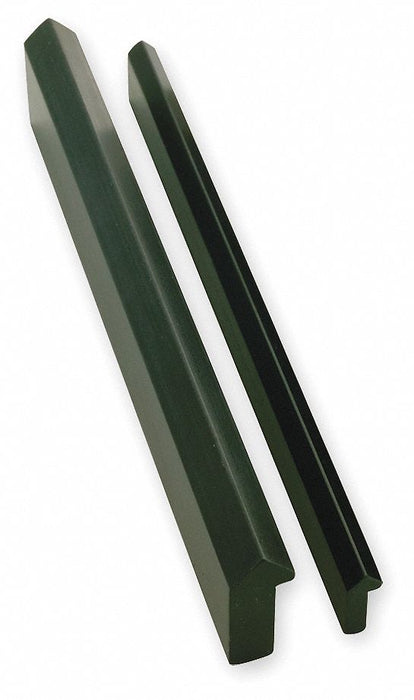

PBC Linear VRD1-048.500 Drilled Linear Rail, V-Guide, Size 1, 48.5 in Length, 0.187 in Width, Carbon Steel

PBC Linear VRD1-048.500 Drilled Linear Rail, V-Guide, Size 1, 48.5 in Length, 0.187 in Width, Carbon Steel

UPC: | Harmonization / Schedule B : 8482.99.0500

Country of Origin: United States | Shipping Weight: 1.1 lbs

$102.64 - $102.64
$102.64
$102.64 - $102.64
$102.64

Drilled Linear Rail, Overall Length 48.5 in, Overall Width 0.187 in, Overall Height 0.421 in, Rail Material Carbon Steel, Manufacturer Size 1, Number of Mounting Holes 25, Rail Finish Cold Roll, Rail Type Slide, System of Measurement Inch, For Use With V-Guide Wheels and Bushings, Operating Temperature - Maximum 180 Degrees F, Operating Temperature - Minimum 0 Degrees F, Mounting Hole Center to Center 2 in, Mounting Hole Center to Shaft End 1.25 in, Channel Material Steel, Series V-Guide

Type V-Guide
Rail Material Carbon Steel
Manufacturer Size 1
Overall Length 48.5 in
Overall Width 0.187 in
Overall Height 0.421 in
Mounting Hole Size 0.156 in
Thread Size #6 or M3
Undercut Depth 0.127 in
Number of Rail Holes 25
Screw Type Low Profile Socket Head Cap
Temp. Range (F) 0 - 248
Rail Finish Cold Roll
Mounting Hole Center to Center 2 in
Raceway 52100 Steel
Number of Mounting Holes 25
Series V-Guide
Rail Type Slide
System of Measurement Inch
Edge Angle 90 Degrees
Load Direction Axial, Radial
Mounting Hole Center to Shaft End 1.25 in
Channel Material Steel
Requires Lubrication Lubricant Not Required
Country of Origin United States
