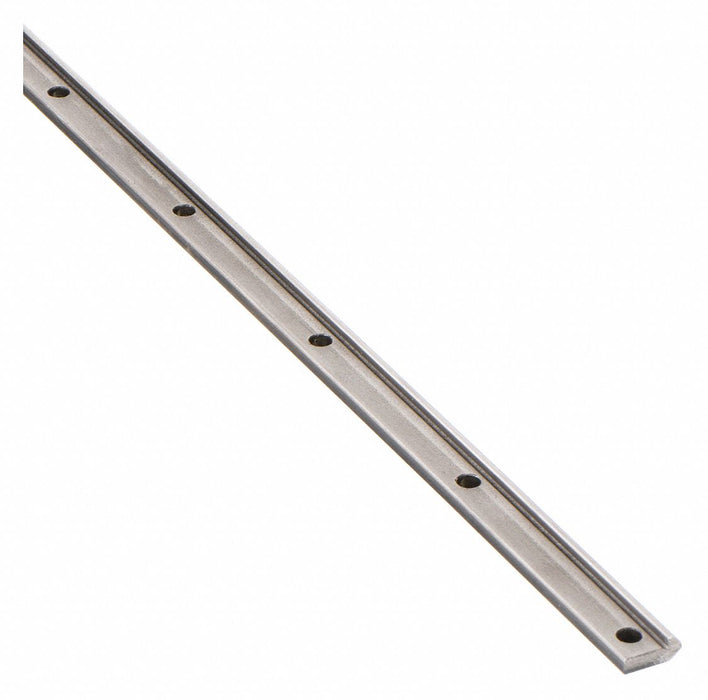

PBC Linear VRD1-024.500 Drilled Linear Rail, V-Guide, Size 1, 24.5 in Length, 0.187 in Width, Steel

PBC Linear VRD1-024.500 Drilled Linear Rail, V-Guide, Size 1, 24.5 in Length, 0.187 in Width, Steel

UPC: | Harmonization / Schedule B : 8482.99.0500

Country of Origin: United States | Shipping Weight: 0.55 lbs

$28.62 - $28.62
$28.62
$28.62 - $28.62
$28.62

Drilled Linear Rail, Overall Length 24.5 in, Overall Width 0.187 in, Overall Height 0.421 in, Rail Material Steel, Manufacturer Size 1, Number of Mounting Holes 12, Rail Finish Cold Roll, Rail Type Slide, System of Measurement Inch, For Use With V-Guide Wheels and Bushings, Operating Temperature - Maximum 180 Degrees F, Operating Temperature - Minimum 0 Degrees F, Mounting Hole Center to Center 2 in, Mounting Hole Center to Shaft End 1.25 in, Channel Material Steel, Series V-Guide

Overall Length 24.5 in
Overall Width 0.187 in
Overall Height 0.421 in
Thread Size #6 or M3
Mounting Hole Size 0.156 in
Undercut Depth 0.127 in
Manufacturer Size 1
Type V-Guide
Rail Material Steel
Number of Rail Holes 13
Mounting Hole Center to Center 2 in
Raceway 52100 Steel
Screw Type Low Profile Socket Head Cap
Temp. Range (F) 0 - 248
For Use With V-Guide Wheels and Bushings
Rail Finish Cold Roll
Temp. Range 0 - 248F
Mounting Hole from Shaft End 0.25 in
Number of Mounting Holes 12
Maximum Operating Temperature 248 Degrees F
Series V-Guide
Rail Type Slide
Minimum Operating Temperature 0 Degrees F
Raceway Material 52100 Steel
Operating Temperature - Maximum 180 Degrees F
Load Direction Axial, Radial
Mounting Hole Center to Shaft End 1.25 in
System of Measurement Inch
Channel Material Steel
Operating Temperature - Minimum 0 Degrees F
Requires Lubrication Lubricant Not Required
Edge Angle 90 Degrees
Country of Origin United States
