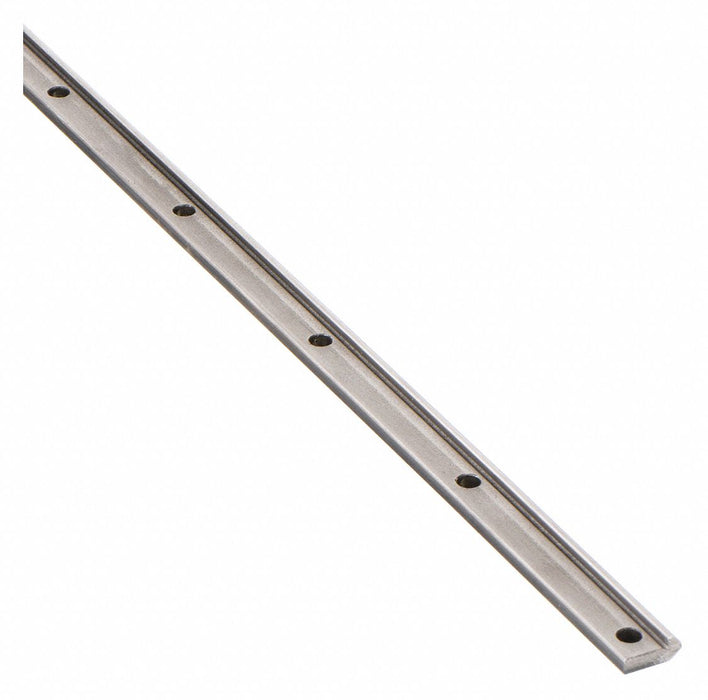

PBC Linear VRD1-012.500 Drilled Linear Rail, V-Guide, Size 1, 12.5 in Length, 0.187 in Width, Carbon Steel

PBC Linear VRD1-012.500 Drilled Linear Rail, V-Guide, Size 1, 12.5 in Length, 0.187 in Width, Carbon Steel

UPC: | Harmonization / Schedule B : 8482.99.0500

Country of Origin: United States | Shipping Weight: 0.3 lbs

$16.82 - $16.82
$16.82
$16.82 - $16.82
$16.82

Drilled Linear Rail, Overall Length 12.5 in, Overall Width 0.187 in, Overall Height 0.421 in, Rail Material Carbon Steel, Manufacturer Size 1, Number of Mounting Holes 7, Rail Finish Cold Roll, Rail Type Slide, System of Measurement Inch, For Use With V-Guide Wheels and Bushings, Operating Temperature - Maximum 180 Degrees F, Operating Temperature - Minimum 0 Degrees F, Mounting Hole Center to Center 2 in, Mounting Hole Center to Shaft End 1.25 in, Channel Material Steel, Series V-Guide

Overall Length 12.5 in
Overall Width 0.187 in
Overall Height 0.421 in
Thread Size #6 or M3
Mounting Hole Size 0.156 in
Manufacturer Size 1
Undercut Depth 0.127 in
Type V-Guide
Rail Material Carbon Steel
Number of Rail Holes 7
Screw Type Low Profile Socket Head Cap
Rail Finish Cold Roll
Temp. Range (F) 0 - 248
For Use With V-Guide Wheels and Bushings
Raceway 52100 Steel
Mounting Hole Center to Center 2 in
Mounting Hole from Shaft End 0.25 in
Temp. Range 0 - 248F
Number of Mounting Holes 7
Raceway Material 52100 Steel
Series V-Guide
Rail Type Slide
Maximum Operating Temperature 248 Degrees F
Minimum Operating Temperature 0 Degrees F
Operating Temperature - Maximum 180 Degrees F
Edge Angle 90 Degrees
Channel Material Steel
Mounting Hole Center to Shaft End 1.25 in
Load Direction Axial, Radial
Operating Temperature - Minimum 0 Degrees F
Requires Lubrication Lubricant Not Required
System of Measurement Inch
Country of Origin United States
