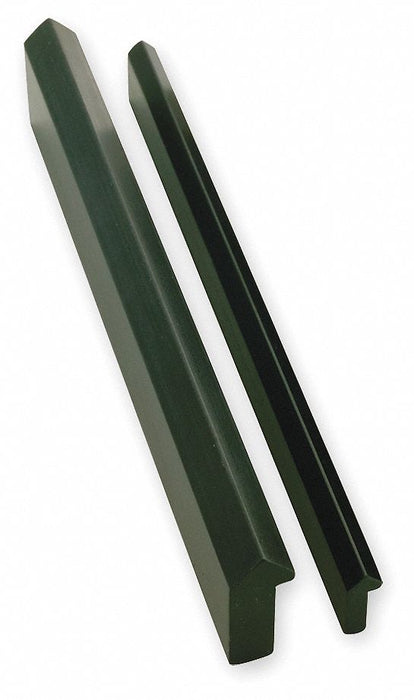

PBC Linear VR2-048.630 Undrilled Linear Rail, V-Guide, Size 2, 48.63 in Length, 0.25 in Width, Steel

PBC Linear VR2-048.630 Undrilled Linear Rail, V-Guide, Size 2, 48.63 in Length, 0.25 in Width, Steel

UPC: | Harmonization / Schedule B : 8482.99.0500

Country of Origin: United States | Shipping Weight: 1.85 lbs

$115.81 - $115.81
$115.81
$115.81 - $115.81
$115.81

Undrilled Linear Rail, Overall Length 48.63 in, Overall Width 0.25 in, Overall Height 0.625 in, Rail Material Steel, Manufacturer Size 2, Number of Mounting Holes Not Applicable, Rail Finish Cold Roll, Rail Type Slide, System of Measurement Inch, For Use With V-Guide Wheels and Bushings, Operating Temperature - Maximum 180 Degrees F, Operating Temperature - Minimum 0 Degrees F

Overall Length 48.63 in
Overall Width 0.25 in
Overall Height 0.625 in
Manufacturer Size 2
Undercut Depth 0.19 in
Type V-Guide
Rail Material Steel
For Use With V-Guide Wheels and Bushings
Raceway 52100 Steel
Temp. Range (F) 0 - 248
Rail Finish Cold Roll
Series V-Guide
Raceway Material 52100 Steel
Minimum Operating Temperature 0 Degrees F
Rail Type Slide
Maximum Operating Temperature 248 Degrees F
System of Measurement Inch
Channel Material Steel
Requires Lubrication Lubricant Not Required
Load Direction Axial, Radial
Edge Angle 90 Degrees
Country of Origin United States
