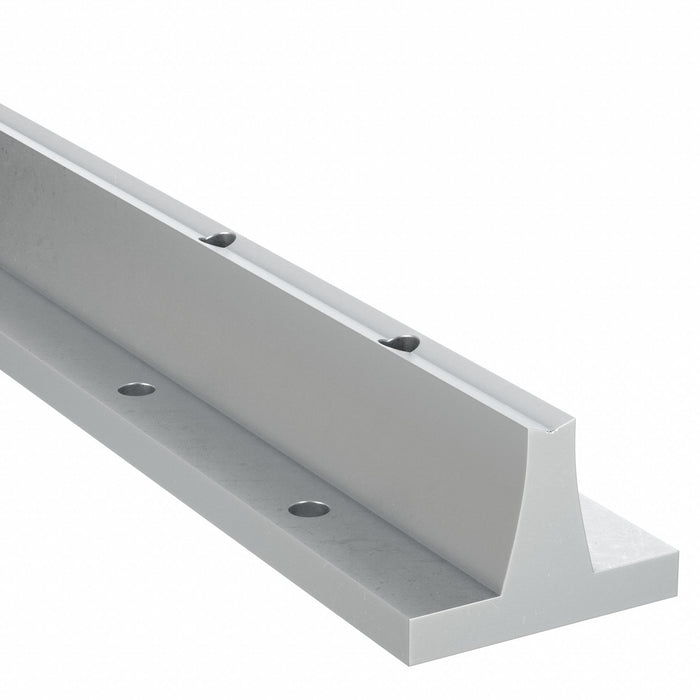

PBC Linear SR24PD-024.000 Pre-Drilled Linear Shaft Support Rail, Aluminum, 24 in Lg

PBC Linear SR24PD-024.000 Pre-Drilled Linear Shaft Support Rail, Aluminum, 24 in Lg

UPC: | Harmonization / Schedule B : 8482.99.0500

Country of Origin: United States | Shipping Weight: 5.69 lbs

$403.92 - $403.92
$403.92
$403.92 - $403.92
$403.92

Pre-Drilled Linear Shaft Support Rail, System of Measurement Inch, Overall Length 24 in, Material Aluminum, Finish Clear, Mounting Surface to Shaft Center 2.5 in, Overall Width 3 in, Overall Height Not Applicable, Mystery Dimension 1.75 in, Thread Size 0.375 In.-16 x 2.000 in, Mounting Hole Center to Center 8 in, Mounting Hole Center to Shaft End 4 in, Base Height 0.375 in, Profile Type Standard Profile, Bolt Size 5/16, For Use With Simplicity FrelonGOLD(TM) Lined Bearings

For Use With Simplicity FrelonGOLD(TM) Lined Bearings
System of Measurement Inch
Material Aluminum
Mounting Holes Clean
Temp. Range (F) 0 Degrees - 400 Degrees F
Mounting Hole from Shaft End 4 in
Mounting Surface to Shaft Center (In.) 2.5 in
Mounting Hole Center to Center 8 in
Finish Clear
Type Pre-Drilled Support Rail
Operating Temperature - Maximum 400 Degrees F
Operating Temperature - Minimum 0 Degrees F
Profile Type Standard Profile
Mounting Surface to Shaft Center 2.5 in
Mounting Hole Center to Shaft End 4 in
Country of Origin United States
