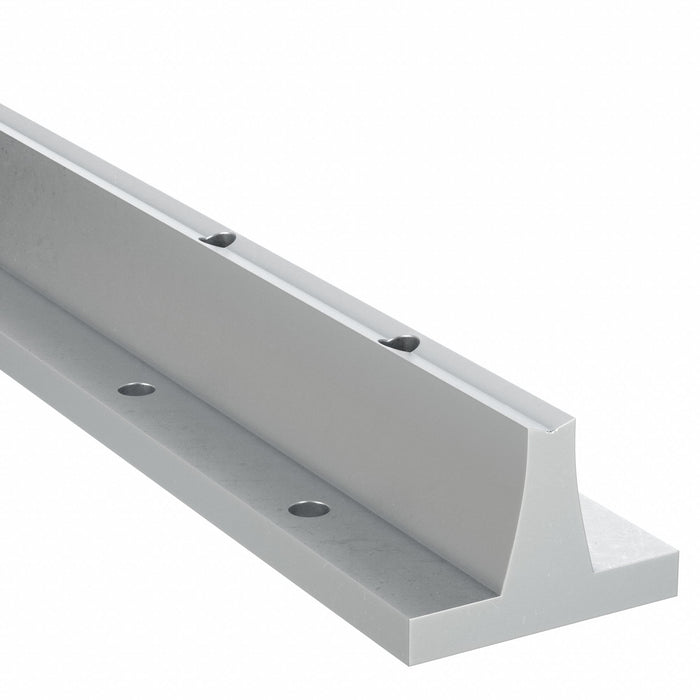

PBC Linear SR08PD-024.000 Pre-Drilled Linear Shaft Support Rail, Aluminum, 24 in Lg

PBC Linear SR08PD-024.000 Pre-Drilled Linear Shaft Support Rail, Aluminum, 24 in Lg

UPC: | Harmonization / Schedule B : 8482.99.0500

Country of Origin: United States | Shipping Weight: 1.75 lbs

$174.40 - $174.40
$174.40
$174.40 - $174.40
$174.40

Pre-Drilled Linear Shaft Support Rail, System of Measurement Inch, Overall Length 24 in, Material Aluminum, Finish Clear, Mounting Surface to Shaft Center 1.125 in, Overall Width 1.5 in, Overall Height Not Applicable, Mystery Dimension 0.875 in, Thread Size 6-32 x 0.375 in, Mounting Hole Center to Center 4 in, Mounting Hole Center to Shaft End 2 in, Base Height 0.188 in, Profile Type Standard Profile, Bolt Size #6, For Use With Simplicity FrelonGOLD(TM) Lined Bearings

For Use With Simplicity FrelonGOLD(TM) Lined Bearings
System of Measurement Inch
Material Aluminum
Mounting Holes Clean
Temp. Range (F) 0 Degrees - 400 Degrees F
Mounting Hole from Shaft End 2 in
Mounting Surface to Shaft Center (In.) 1.125 in
Mounting Hole Center to Center 4 in
Finish Clear
Type Pre-Drilled Support Rail
Operating Temperature - Maximum 400 Degrees F
Operating Temperature - Minimum 0 Degrees F
Profile Type Standard Profile
Mounting Surface to Shaft Center 1.125 in
Mounting Hole Center to Shaft End 2 in
Country of Origin United States
