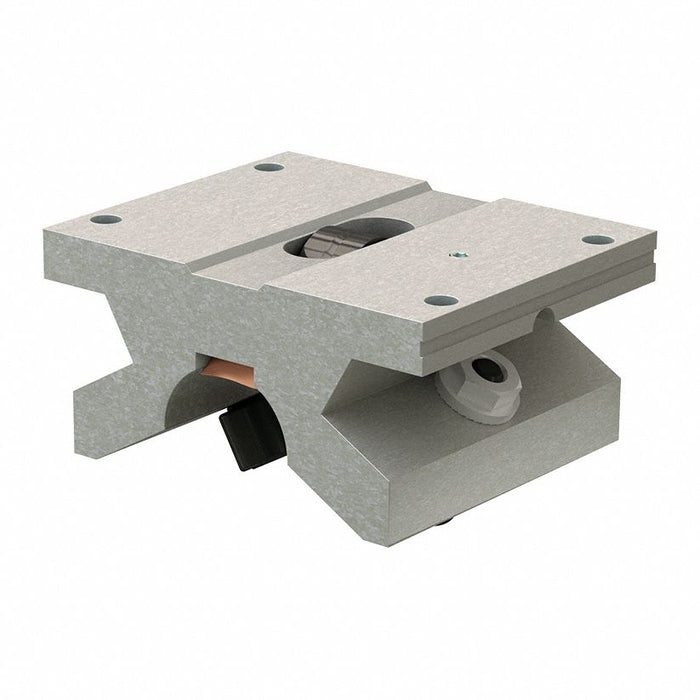

PBC Linear SPB-32-OPN-S Single Roller Pillow Block with Scrapers, For 2 in Round Shaft, 2,400 lbf Dynamic Load Rating

PBC Linear SPB-32-OPN-S Single Roller Pillow Block with Scrapers, For 2 in Round Shaft, 2,400 lbf Dynamic Load Rating

UPC: | Harmonization / Schedule B : 8482.10.5012

Country of Origin: United States | Shipping Weight: 5.0 lbs

$1,008.71 - $1,008.71
$1,008.71
$1,008.71 - $1,008.71
$1,008.71

Single Roller Pillow Block, Includes Scrapers Scrapers Included, System of Measurement Inch, For Shaft Diameter 2 in, Overall Length 4.75 in, Overall Width 6 in, Overall Height 3.5 in, Center Height 2.125 in, Dynamic Load Rating 2,400 lbf, Carriage Type Single, Mount Hole Center to Center Width 5.25 in, Mount Hole Center to Center Length 3.25 in, For Shaft Type Round, Mounting Hole Diameter 0.40625 in, Shaft Center to Mount Hole Width 2.5 in, Bearing Material Aluminum Alloy

System of Measurement Inch
Housing Material Aluminum Alloy
Bearing Material Aluminum Alloy
Resistance Properties Corrosion Resistance
Roller Bearing Type Ball Bearing
For Shaft Type Round
Carriage Type Single
Weight 5 lb
Dynamic Load Rating 2,400 lbf
Includes Scrapers Scrapers Included
Minimum Temperature 250 Degrees F
Lubricant Material Grease Lubrication
Maximum Temperature 392 Degrees F
Country of Origin United States
